ARAN
CAPSTANS
Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 28 meters. Available in 24V, 230V, 400V or hydraulic drive.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 2000W | 2300W | 2700W | 2200W | 3000W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 24V | 24V | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 1750 Kg | 2100 Kg | 2300 Kg | 2100 Kg | 3000 Kg | 1500 Kg |
| LIFT WORKING LOAD | 260 Kg | 500 Kg | 600 Kg | 525 Kg | 730 Kg | 1500 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min | 12 mt/min | 18 mt/min | 12 mt/min |
| CURRENT ABSORPTION | 90 A | 120 A | 150 A | N/A | N/A | N/A |
| WEIGHT | <>40 to 55 Kg | |||||

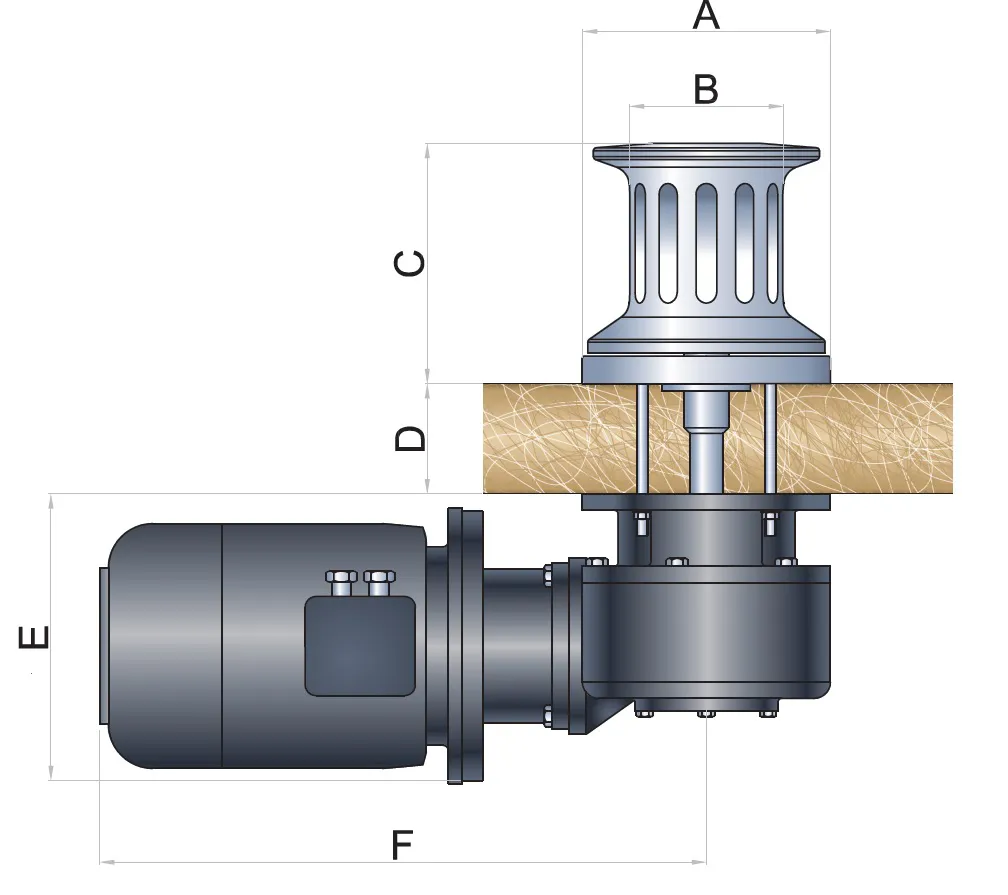

2000
| A | 225 |
| B | 125 |
| C | 181 |
| D | 70/95 |
| E | 183 |
| F | 330 |
2300
| A | 225 |
| B | 125 |
| C | 181 |
| D | 60/110 |
| E | 183 |
| F | 435 |
2700
| A | 225 |
| B | 125 |
| C | 181 |
| D | 60/110 |
| E | 183 |
| F | 435 |
2200AC
| A | 225 |
| B | 125 |
| C | 181 |
| D | 60/110 |
| E | 183 |
| F | 435 |
3600AC
| A | 225 |
| B | 125 |
| C | 181 |
| D | 60/110 |
| E | 183 |
| F | 435 |
HY
| A | 225 |
| B | 125 |
| C | 181 |
| D | 60/110 |
| E | 183 |
| F | 232 |
All sizes are in mm
