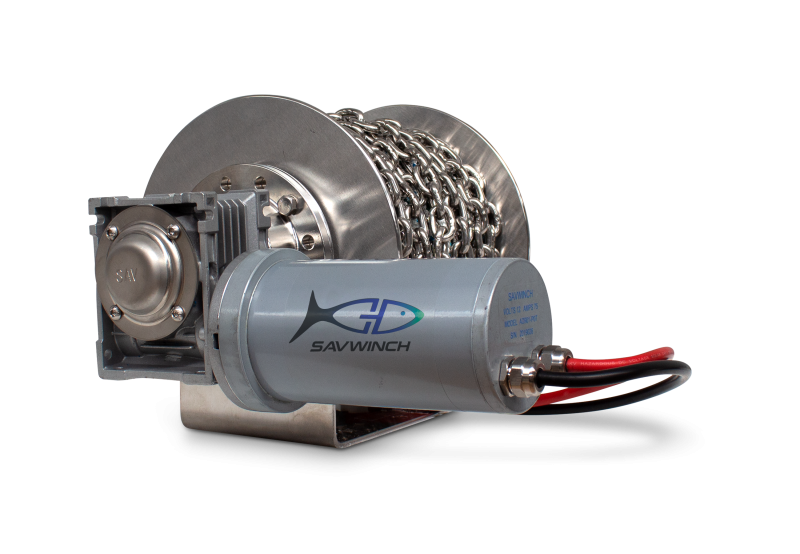

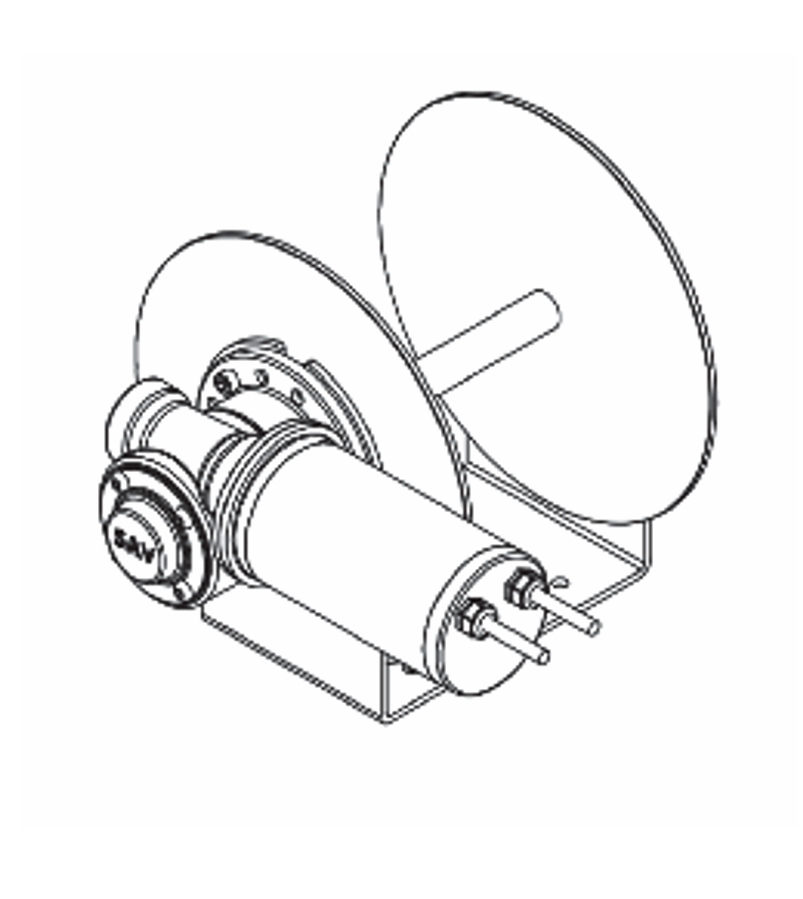

The Classic Series (CS) is the industry standard level of Drum Winch and has been tested and proven for over a decade. Machined to fine tolerances and utilising O ring seals, the CS series motors are completely submersible without the use of sealants or glues. You no longer need to be concerned about water ingress or corrosion

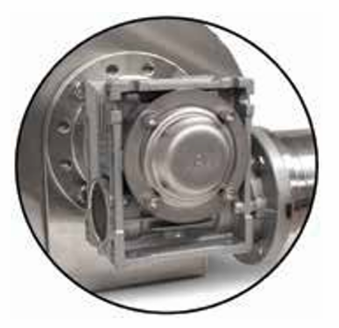

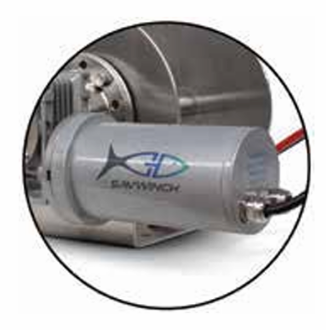

The Classic Series is the industry standard level range, it features a double marine grade powder coated steel motor, double marine grade powder coated aluminium gearbox, and a 316 stainless steel drum. As with all of our Winches, the classic series is IP68 rated and features a patented injection mould which fills all of the air pockets inside the motor. The motor is a solid block steel motor (no covers/sleeves over the motor) which combined with the injection mould ensures no moisture or condensation can get inside the motor.

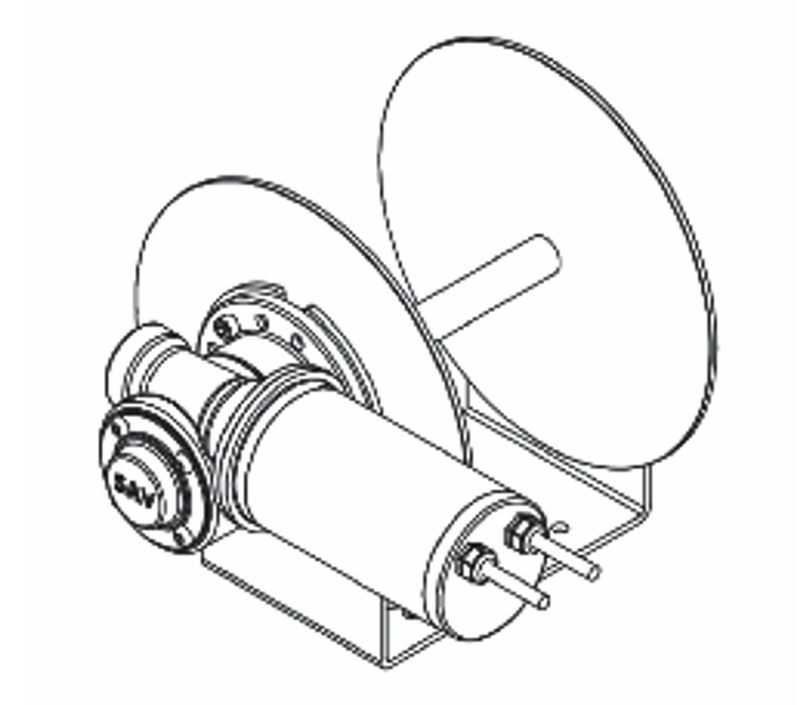

| SKU | Model | Width | Height | Max Boat Size | Included Rope Kit |
|---|---|---|---|---|---|
| 4003 | 450 | 316mm | 190mm | 4.5m | 45m of 6mm Double Braid + 5m Chain |
| 4004 | 880 | 315mm | 210mm | 5.5m | 65m of 6mm Double Braid + 6m Chain |
| 4008M | 1000M | 344mm | 210mm | 7m | 65m of 6mm Double Braid + 6m Chain |
| 4008 | 1000 | 377mm | 250mm | 7m | 95m of 7mm Double Braid + 7m Chain |
| 4012 | 1500 | 377mm | 350mm | 8m | 95m of 8mm Double Braid + 8m Chain |
