CLP
VERTICAL WINDLASSES
CLP is a stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 16 m. CLP can use 6mm, 8mm or 10mm chains and is equipped with rope tensioner for Rope/Chain operation. Comes with a built-in chain counter sensor.
Motor
SPECIFICATIONS
| ELECTRIC MOTOR | 700W | 700W | 1000W | 1000W | 1500W | 1500W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V | 12V | 24V |
| MAXIMUM PULL | 750 Kg | 790 Kg | 1020 Kg | 1060 Kg | 1250 Kg | 1290 Kg |
| LIFT WORKING LOAD | 100 Kg | 110 Kg | 130 Kg | 140 Kg | 150 Kg | 160 Kg |
| LINE SPEED | 25 mt/min | 25 mt/min | 25 mt/min | 25 mt/min | 26 mt/min | 26 mt/min |
| CURRENT ABSORPTION | 90 A | 40 A | 115 A | 60 A | 130 A | 70 A |
| WEIGHT (WITHOUT CAPSTAN) | 13.7 Kg | 13.7 Kg | 16.7 Kg | 16.7 Kg | 16.9 Kg | 16.9 Kg |
| WEIGHT (WITH CAPSTAN) | N/A | N/A | 18.1 Kg | 18.1 Kg | 18.3 Kg | 18.3 Kg |

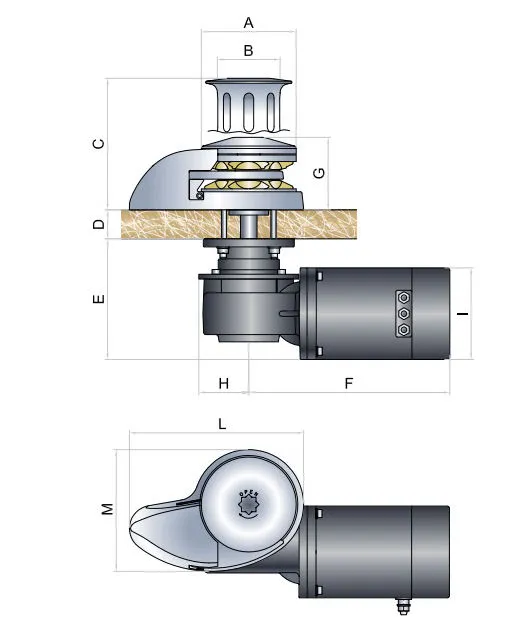

700
| A | 118 |
| B | 78 |
| C | 164 |
| D | 18/35 |
| E | 150 |
| F | 231 |
| G | 92 |
| H | 43 |
| I | 82 |
| L | 221 |
| M | 156 |
1000
| A | 118 |
| B | 78 |
| C | 164 |
| D | 25/50 |
| E | 150 |
| F | 250 |
| G | 92 |
| H | 62 |
| I | 114 |
| L | 221 |
| M | 156 |
1500
| A | 118 |
| B | 78 |
| C | 164 |
| D | 25/50 |
| E | 150 |
| F | 250 |
| G | 92 |
| H | 62 |
| I | 114 |
| L | 221 |
| M | 156 |
All sizes are in mm
