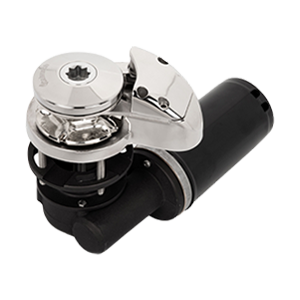

CLS

VERTICAL WINDLASSES

Stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 13m. CLS can use chains up to 8mm and is equipped with rope tensioner for Rope/Chain operation. Comes with a built-in chain counter sensor.

OzziMarine

Motor

SPECIFICATIONS
ELECTRIC MOTOR 500W 500W 700W 700W 1000W 1000W
MOTOR SUPPLY VOLTAGE 12V 24V 12V 24V 12V 24V
MAXIMUM PULL 650 Kg 660 Kg 750 Kg 760 Kg 930 Kg 940 Kg
LIFT WORKING LOAD 90 Kg 90 Kg 100 Kg 100 Kg 130 Kg 130 Kg
LINE SPEED 23 mt/min 23 mt/min 25 mt/min 25 mt/min 26 mt/min 26 mt/min
CURRENT ABSORPTION 60 A 32 A 90 A 40 A 115 A 60 A
WEIGHT (WITHOUT CAPSTAN) 9 Kg 9 Kg 9,5 Kg 9,5 Kg 13 Kg 13 Kg
WEIGHT (WITH CAPSTAN) 10 Kg 10 Kg 10.5 Kg 10.5 Kg 14.5 Kg 14.5 Kg

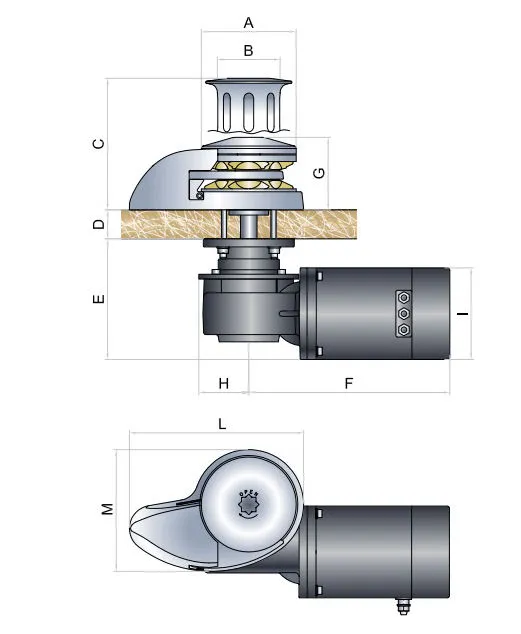

500
A 90
B 56
C 129
D 18/35
E 115
F 231
G 76
H 43
I 82
L 182
M 122
700
A 90
B 56
C 129
D 18/35
E 115
F 231
G 76
H 43
I 82
L 182
M 122
1000
A 90
B 56
C 129
D 18/35
E 150
F 250
G 76
H 62
I 114
L 182
M 122
OzziMarine

All sizes are in mm
