DEVON
HORIZONTAL WINDLASSES
Anticorodal anodized Aluminium horizontal windlass. DEVON can use chain sizes 6mm, 8mm to 10mm in diameter. Available with different drives and recommended for vessels up to 15m. Comes with built-in chain counter sensor.
SPECIFICATIONS
| ELECTRIC MOTOR | 1000W | 1000W | 1500W | 1500W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V |
| MAXIMUM PULL | 1290 Kg | 1310 Kg | 1350 Kg | 1370 Kg |
| LIFT WORKING LOAD | 150 Kg | 160 Kg | 180 Kg | 190 Kg |
| LINE SPEED | 25 mt/min | 25 mt/min | 26 mt/min | 26 mt/min |
| CURRENT ABSORPTION | 115 A | 60 A | 130 A | 70 A |
| WEIGHT (WITHOUT CAPSTAN) | N/A | N/A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | <>25 to 28 Kg | |||

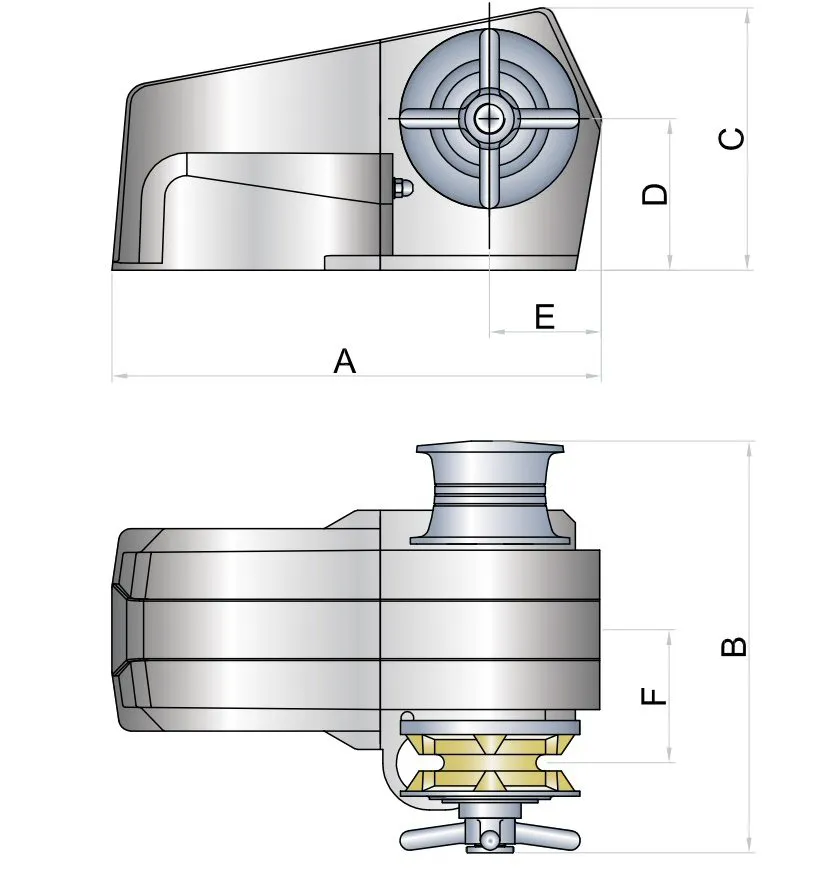

1000
| A | 400 |
| B | 336 |
| C | 214 |
| D | 124 |
| E | 91 |
| F | 110 |
1500
| A | 400 |
| B | 336 |
| C | 214 |
| D | 124 |
| E | 91 |
| F | 110 |
All sizes are in mm
