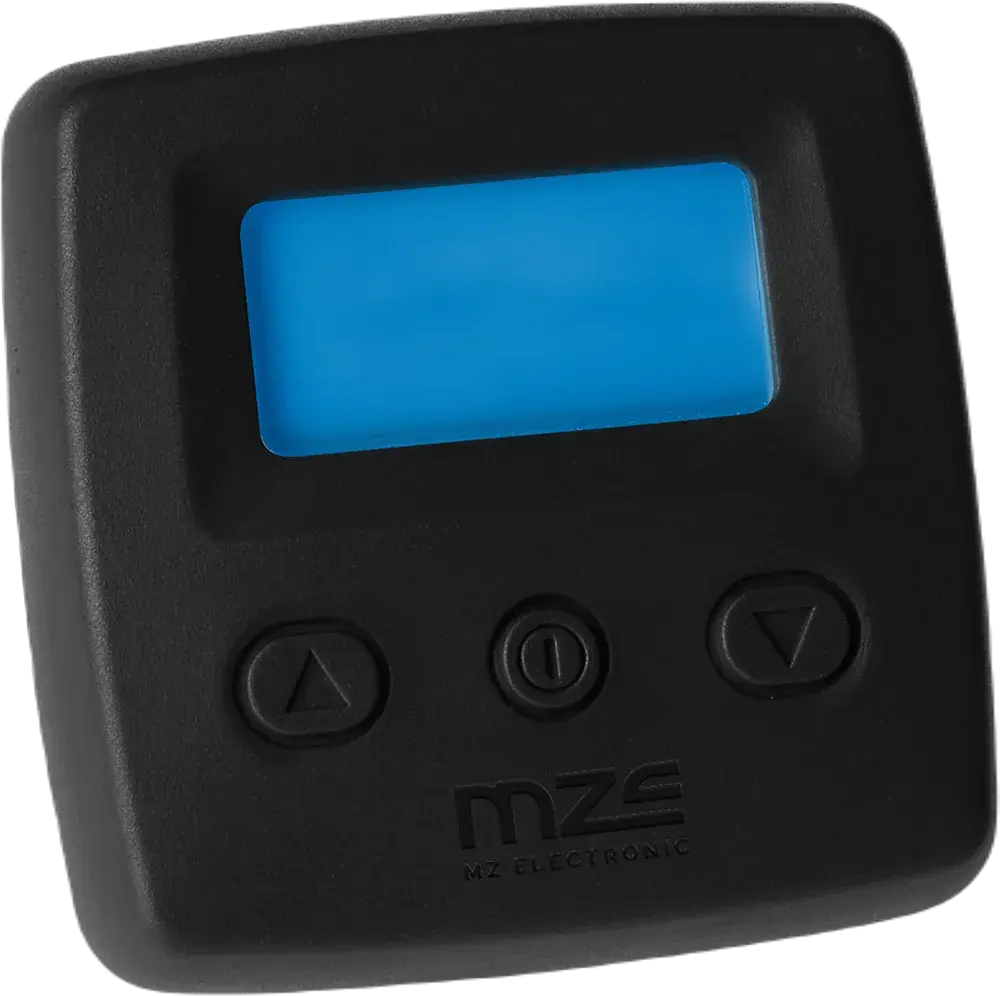

    SC030 CHAIN COUNTER

    TECHNICAL CHARACTERISTICS OF THE CHAIN COUNTER:

    Compact with elegant and functional design, it’s perfect for every flybridge and every winch so that anchorage manouvres are always under Control. Perfect for replacing the old out dated AA560 perfecting hiding the existing hole. L 105 mm x H 105 mm x P 35 mm

    • check_icn Dimensions 105x105x35mm
    • check_icn Supply voltage: 10–32V DC
    • check_icn Display: TFT 3.45”, 320 × 240 pixels with adjustable white backlight
    • check_icn Highly hard scratch-resistant glass front panel
    • check_icn Capacitive touch buttons with blue backlight
    • check_icn Two selectable graphic color modes: white or black
    • check_icn Internal buzzer for alarms and buttons
    • check_icn Indications in 5 languages
    • check_icn Up alarm function and automatic descent function
    • check_icn Automatic keypad lock to prevent accidental operations
    • check_icn Windlass or capstan mode
    • check_icn Chain speed and supply voltage on display
    • check_icn Unit of measure: meters or feet
    • check_icn RS485 interface port for MODBUS-RTU communication
    • check_icn M12 metal socket for industrial secure connection
    • check_icn IP rating: IP66
    SC030 CHAIN COUNTER
