FYN
HORIZONTAL WINDLASSES
FYN horizontal windlass with Anodized Aluminium Housing and stainless steel Capstan. Gypsy’s for 8mm, 10mm Short Link, 10mm ISO, 10mm DIN766, 12mm ISO, 13mm DIN766 and 13mm Australian Short Link Chains. Suitable for vessels to 18m.
SPECIFICATIONS
| ELECTRIC MOTOR | 1700W | 1700W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V |
| MAXIMUM PULL | 1700 Kg | 1750 Kg |
| LIFT WORKING LOAD | 260 Kg | 270 Kg |
| LINE SPEED | 14 mt/min | 14 mt/min |
| CURRENT ABSORPTION | 135 A | 75 A |
| WEIGHT (WITH CAPSTAN) | 35 Kg | 35 Kg |

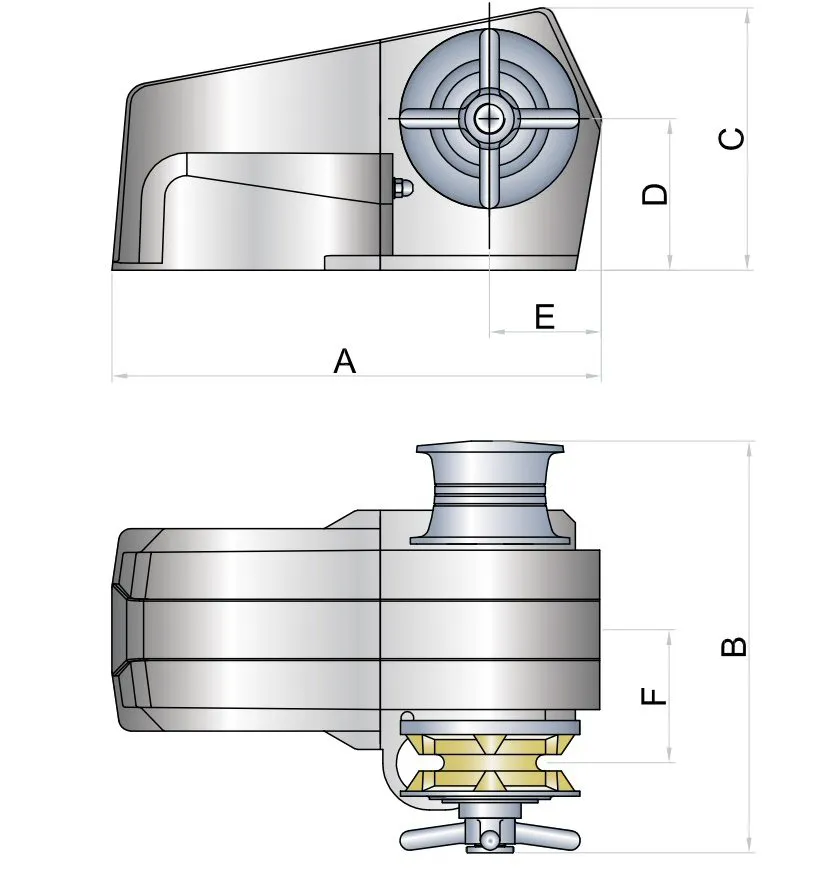

1700
| A | 445 |
| B | 363 |
| C | 278 |
| D | 162 |
| E | 128 |
| F | 100 |
All sizes are in mm
