IDHRA
GARAGE WINCHES
1/Garage Winch for Tender recovery. Stainless steel AISI 316 drum, to be used with belt and snap-hook fastening. (Not supplied as standard with the product)
Hydraulic
Motor
SPECIFICATIONS
| ELECTRIC MOTOR | 1000W | 1000W | 1500W | 1500W | 1700W | 1700W | HY | 2000W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V | 12V | 24V | N/A | 230V/400V |
| MAXIMUM PULL | 1020 Kg | 1060 Kg | 1250 Kg | 1290 Kg | 1650 Kg | 1700 Kg | 380 Kg | 1700 Kg |
| LIFT WORKING LOAD | 130 Kg | 140 Kg | 150 Kg | 160 Kg | 220 Kg | 240 Kg | 380 Kg | 250 Kg |
| LINE SPEED | 25 mt/min | 25 mt/min | 26 mt/min | 26 mt/min | 26 mt/min | 26 mt/min | 26 mt/min | 12 mt/min |
| CURRENT ABSORPTION | 115A | 60A | 130A | 70A | 185A | 90A | N/A | N/A |
| WEIGHT | 19Kg | 19Kg | 19.6Kg | 19.6Kg | 24Kg | 24Kg | 21 Kg | 25 Kg |

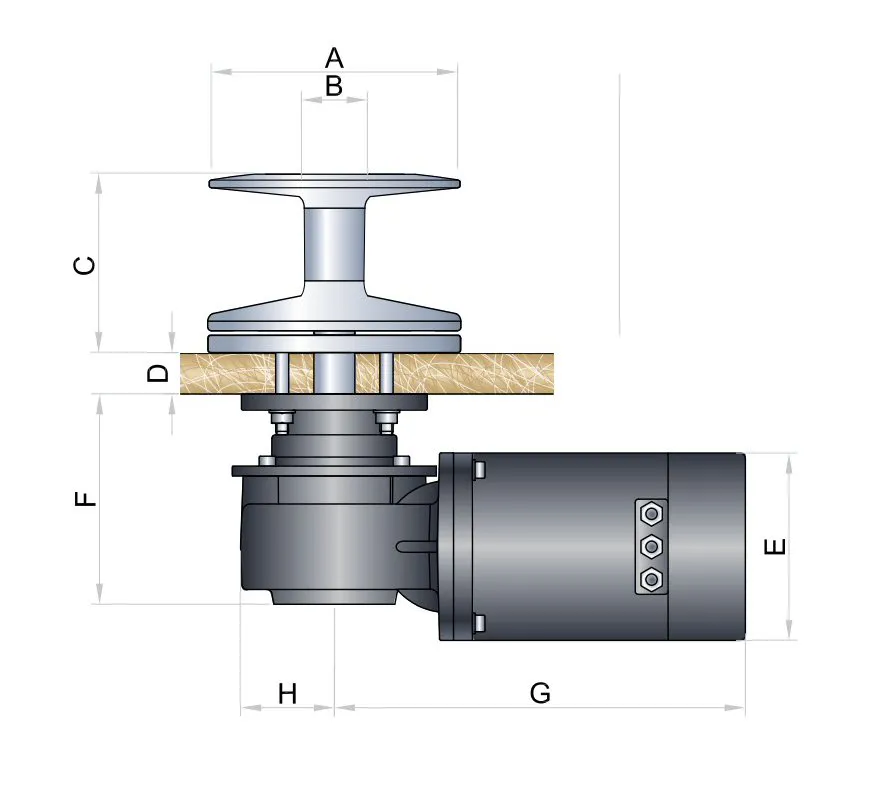

1000
| A | 208 |
| B | 60 |
| C | 113 |
| D | 25/50 |
| E | 114 |
| F | 150 |
| G | 250 |
| H | 80 |
1500
| A | 208 |
| B | 60 |
| C | 113 |
| D | 25/50 |
| E | 114 |
| F | 150 |
| G | 250 |
| H | 80 |
1700
| A | 208 |
| B | 60 |
| C | 113 |
| D | 25/50 |
| E | 127 |
| F | 175 |
| G | 330 |
| H | 80 |
HY
| A | 208 |
| B | 60 |
| C | 113 |
| D | 25/50 |
| E | 102 |
| F | 175 |
| G | 170 |
| H | 80 |
2000
| A | 208 |
| B | 60 |
| C | 113 |
| D | 25/50 |
| E | 165 |
| F | 210 |
| G | 350 |
| H | 80 |
All sizes are in mm
