Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 38 meter. Available in 24V, 230V, 400V or hydraulic drive.
| ELECTRIC MOTOR | 3500W | 3000W | 4000W | HY |
|---|---|---|---|---|
| MOTOR SUPPLY VOLTAGE | 24V | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 4000 Kg | 4000 Kg | 4500 Kg | 1900 Kg |
| LIFT WORKING LOAD | 1100 Kg | 1100 Kg | 1300 Kg | 1900 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min | 12 mt/min |
| CURRENT ABSORPTION | 195 A | N/A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | 60 to 80 Kg | 60 to 80 Kg | 60 to 80 Kg | 60 to 80 Kg |

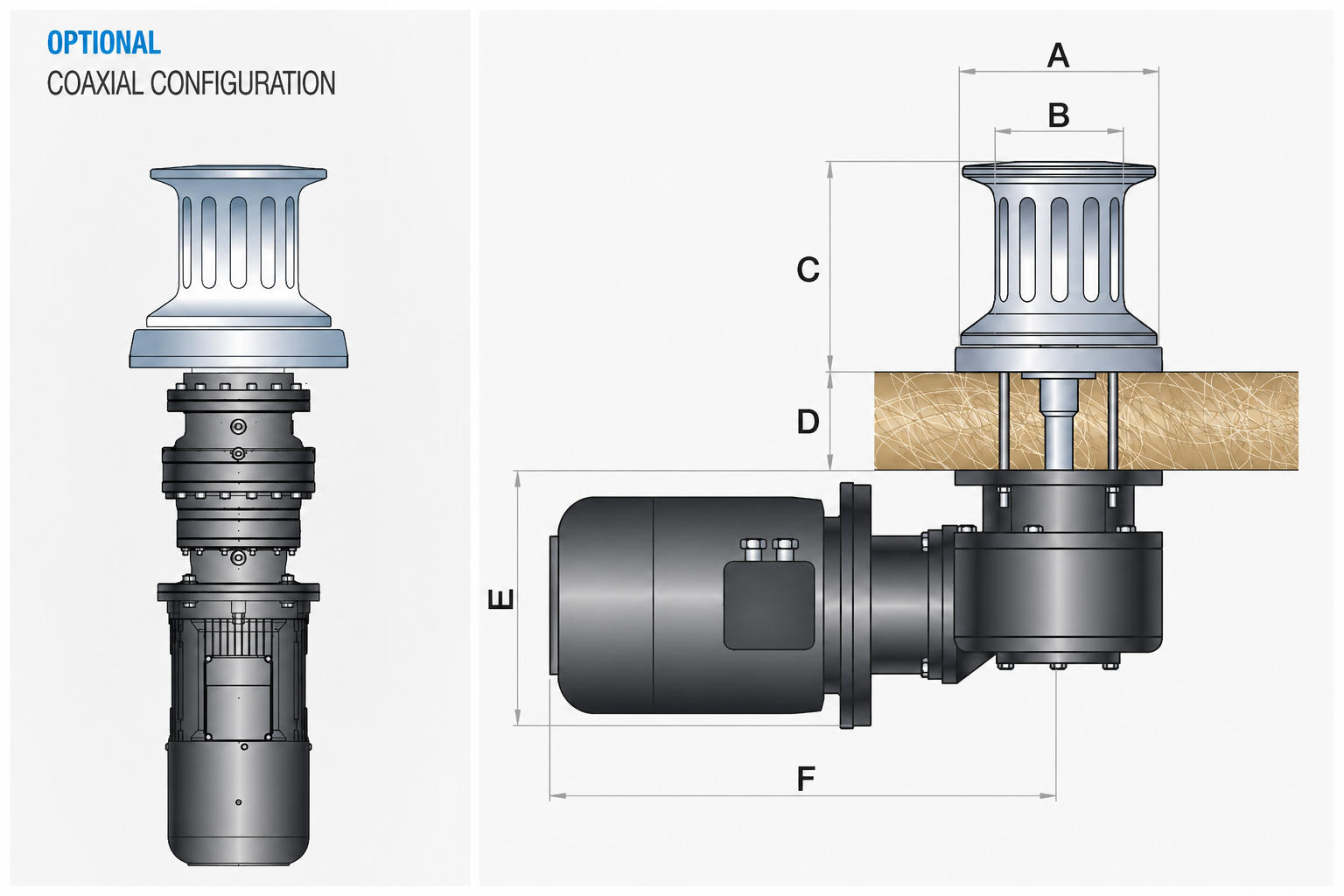

| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 3500 | 225 | 140 | 218 | 130/170 | 263 | 562 |
| 3000AC | 225 | 140 | 218 | 130/170 | 263 | 675 |
| 4000AC | 225 | 140 | 218 | 130/170 | 263 | 600 |
| HY | 225 | 140 | 218 | 130/170 | 263 | 450 |
