MOON
VERTICAL WINDLASSES
MOON is a stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 30m. MOON can use chains up to 16mm. All the models for stud link chains support kenter link. Possibility of 24V, 230V, 400V or hydraulic drive.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 3500W | 4000W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 230V/400V | N/A |
| MAXIMUM PULL | 3400 Kg | 3500 Kg | 1900 Kg |
| LIFT WORKING LOAD | 1000 Kg | 1250 Kg | 1900 Kg |
| LINE SPEED | 15 mt/min | 14 mt/min | 14 mt/min |
| CURRENT ABSORPTION | 195 A | N/A | N/A |
| WEIGHT (WITHOUT CAPSTAN) | <>N/A | ||
| WEIGHT (WITH CAPSTAN) | <>70 to 100 Kg | ||

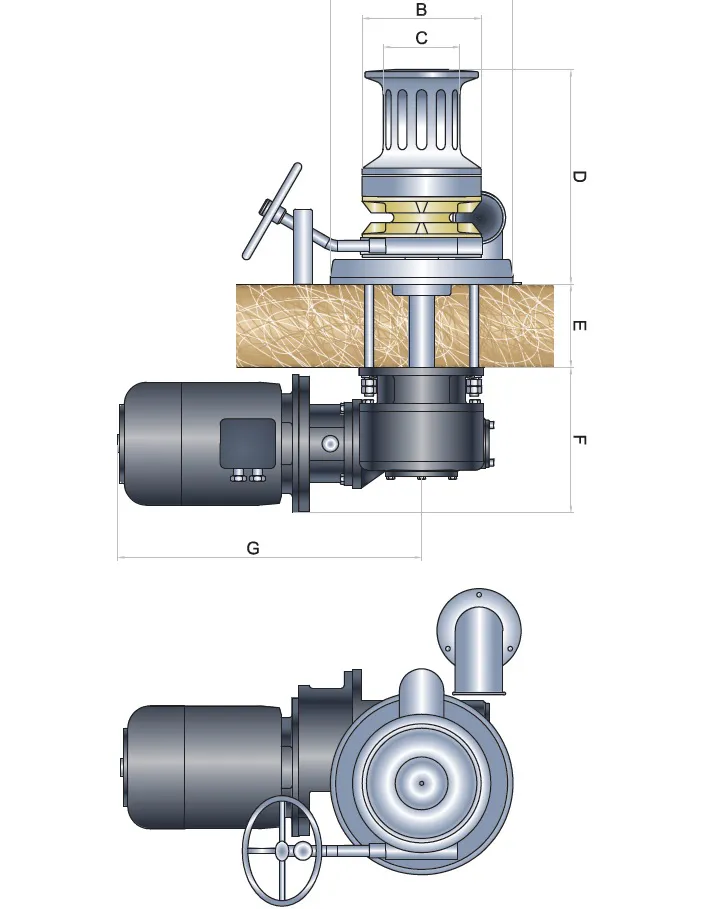

3500
| A | 225 |
| B | 215 |
| C | 140 |
| D | 347 |
| E | 70/120 |
| F | 260 |
| G | 460 |
| H | 183 |
4000AC
| A | 225 |
| B | 215 |
| C | 140 |
| D | 347 |
| E | 70/120 |
| F | 260 |
| G | 525 |
| H | 183 |
HY
| A | 225 |
| B | 215 |
| C | 140 |
| D | 347 |
| E | 70/120 |
| F | 260 |
| G | 285 |
| H | 183 |
All sizes are in mm
