NC-300B
CAPSTANS
![OzziMarine OzziMarine](/assets/documents/656-4577730176115-CjULUq/nc-300b-removebg-preview.webp)
Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 50m. Available in 230V, 400V or hydraulic drive.
Hydraulic
SPECIFICATIONS
ELECTRIC MOTOR | 3500W | 3000W | 4000W | HY1 |
MOTOR SUPPLY VOLTAGE | 24V | 230V/400V | 230V/400V | N/A |
MAXIMUM PULL | 3000 Kg | 3100 Kg | 4200 Kg | 3000 Kg |
LIFT WORKING LOAD | 1100 Kg | 1250 Kg | 1700 Kg | 3000 Kg |
LINE SPEED | 13 mt/min | 12 mt/min | 12 mt/min | 12 mt/min |
WEIGHT | <>140 to 190 Kg |

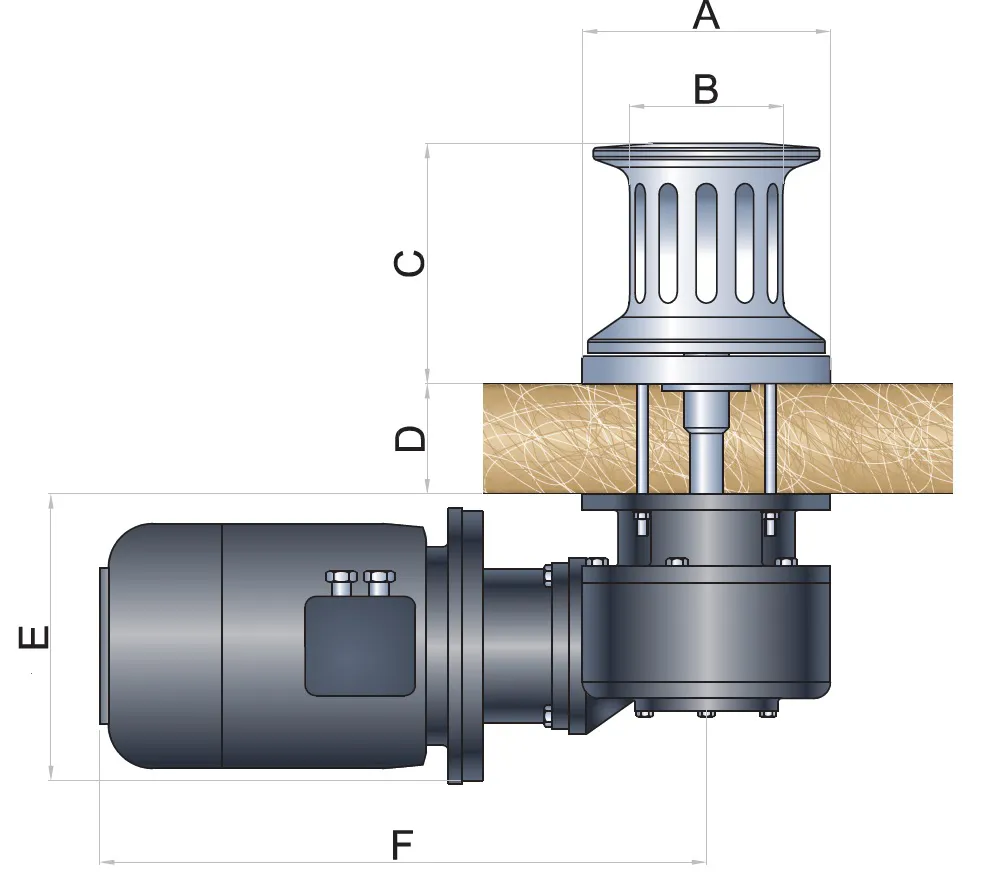

3500DC
A | 330 |
B | 180 |
C | 316 |
D | 120/170 |
E | 470 |
F | 528 |
3000AC
A | 330 |
B | 180 |
C | 316 |
D | max150 |
E | 550 |
F | 627 |
4000AC
A | 330 |
B | 180 |
C | 316 |
D | max150 |
E | 550 |
F | 651 |
HY1
A | 330 |
B | 180 |
C | 316 |
D | max150 |
E | 550 |
F | 365 |
![OzziMarine OzziMarine](/assets/documents/657-4577730314777-uPC5Wj/corfu-milos-disegno.webp)
All sizes are in mm
