NC-360, NC-440, NC-500

CAPSTANS AND GARAGE WINCHES

OzziMarine

Stainless steel AISI 316 capstan winch, with different drives and recommended for boats up to 100m. Possibility of 230V, 400V or hydraulic drive.

Hydraulic

Hydraulic

SPECIFICATIONS
ELECTRIC MOTOR 7500W 9200W 11000W 15000W 18500W HY1 HY2
MOTOR SUPPLY VOLTAGE 230V/400V 230V/400V 230V/400V 230V/400V 230V/400V N/A N/A
MAXIMUM PULL 7075 Kg 9056 Kg 10827 Kg 14765 Kg 15866 Kg 4528 Kg 9425 Kg
LIFT WORKING LOAD 3537 Kg 4528 Kg 5413 Kg 7382 Kg 7933 Kg 4528 Kg 9425 Kg
LINE SPEED 12 mt/min 12 mt/min 12 mt/min 12 mt/min 13 mt/min 12 mt/min 13 mt/min

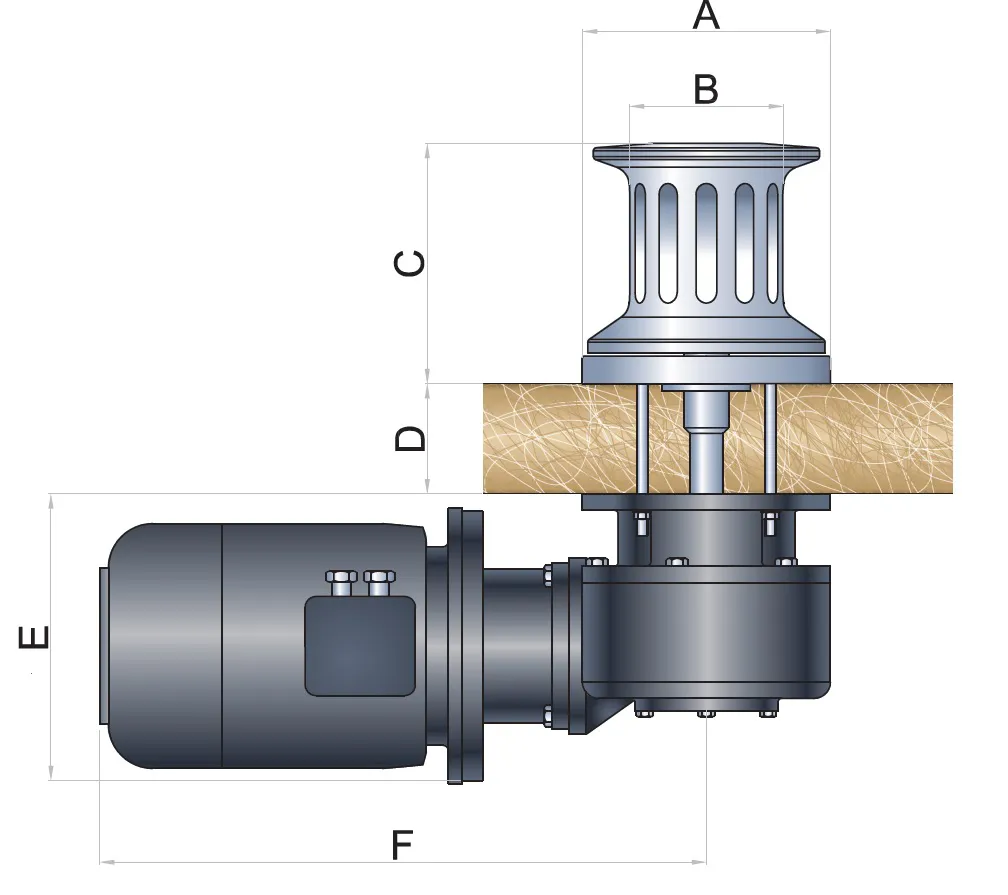

NC-360
A 360
B 230
C 310
D MIN235
E 457
F 735
NC-440
A 440
B 290
C 385
D MIN300
E 511
F 830
NC-500
A 500
B 400
C 440
D MIN400
E 540
F 900
OzziMarine

All sizes are in mm
