NC-560
CAPSTANS
Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 100m. Available in 230V, 400V or hydraulic drive.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 18500W | 22000W | HY2 |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 15866 Kg | 18851 Kg | 9425 Kg |
| LIFT WORKING LOAD | 7933 Kg | 9425 Kg | 9425 Kg |
| LINE SPEED | 13 mt/min | 13 mt/min | 13 mt/min |

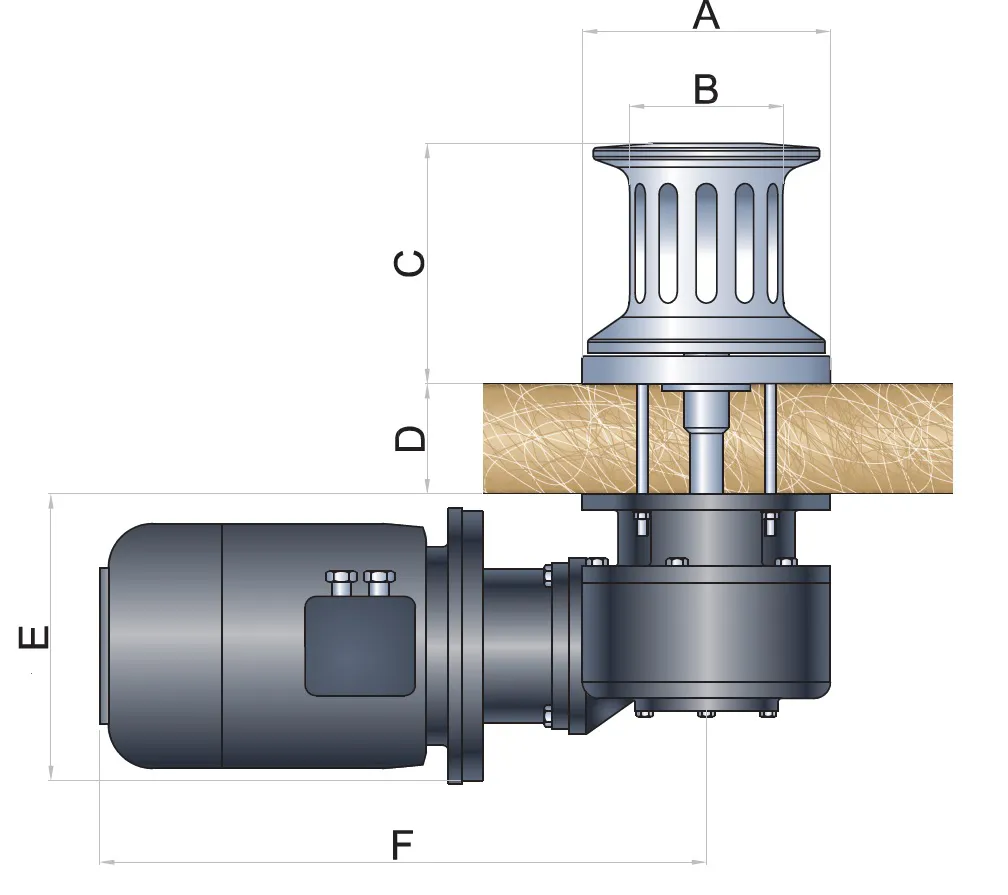

NC-560
| A | 560 |
| B | 470 |
| C | 460 |
| D | MIN500 |
| E | 560 |
| F | 1060 |
All sizes are in mm
