NESTOR
CAPSTANS

Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 17 metres.
Motor
SPECIFICATIONS
ELECTRIC MOTOR | 1000W | 1000W | 1500W | 1500W |
MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V |
MAXIMUM PULL | 1020 Kg | 1060 Kg | 1250 Kg | 1290 Kg |
LIFT WORKING LOAD | 130 Kg | 140 Kg | 150 Kg | 160 Kg |
LINE SPEED | 25 mt/min | 25 mt/min | 26 mt/min | 26 mt/min |
CURRENT ABSORPTION | 115 A | 60 A | 130 A | 70 A |
WEIGHT | 11.5 Kg | 11.5 Kg | 11.8 Kg | 11.8 Kg |

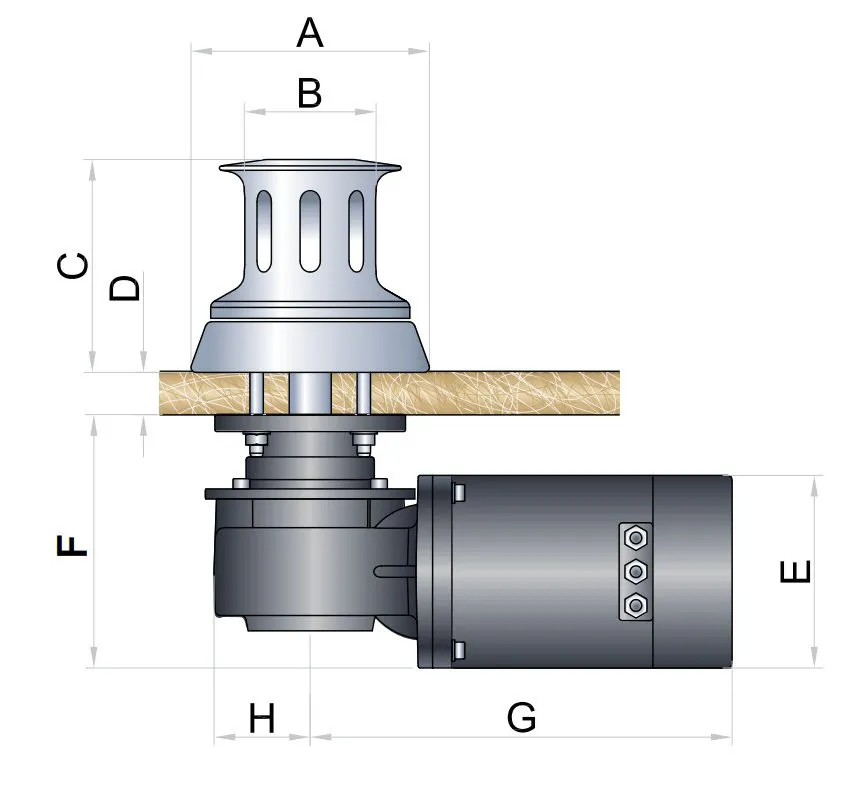

1000
A | 138 |
B | 80 |
C | 126 |
D | 30/52 |
E | 114 |
F | 150 |
G | 250 |
H | 80 |
1500
A | 138 |
B | 80 |
C | 126 |
D | 30/52 |
E | 114 |
F | 150 |
G | 250 |
H | 80 |

All sizes are in mm
