NESTOR-VX
CAPSTANS
NESTOR-VX is the new mooring winch in AISI 316 stainless steel. Easy to install thanks to the EASY FIT system. It is recommended for vessels up to 13m. Available in 12V or 24V motors.
Motor
SPECIFICATIONS
| ELECTRIC MOTOR | 800W | 800W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V |
| MAXIMUM PULL | 800 Kg | 810 Kg |
| LIFT WORKING LOAD | 100 Kg | 100 Kg |
| LINE SPEED | 25 mt/min | 25 mt/min |
| CURRENT ABSORPTION | 90 A | 45 A |
| WEIGHT (WITH CAPSTAN) | 10.5 Kg | 10.5 Kg |

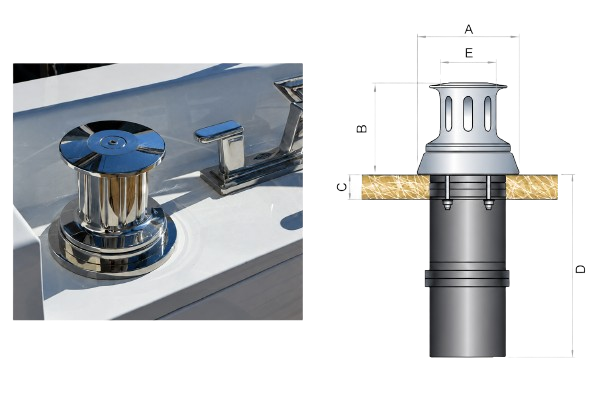

800
| A | 118 |
| B | 145 |
| C | 20 |
| D | 237 |
| E | 78 |
All sizes are in mm
