NH-24
HORIZONTAL WINDLASSES
Stainless steel horizontal axis windlass. The NH-24 can use chains up to 24mm stud link. With different drives and recommended for vessels up to 80m. Available in different Capstan and Gypsy configurations. For possible configurations, see the windlass configuration table.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 9200W | 11000W | HY |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | N/A |
| MAXIMUM LIFT LOAD | 7200 Kg | 8900 Kg | 4400 Kg |
| LIFT WORKING LOAD | 3600 Kg | 4400 Kg | 4400 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min |

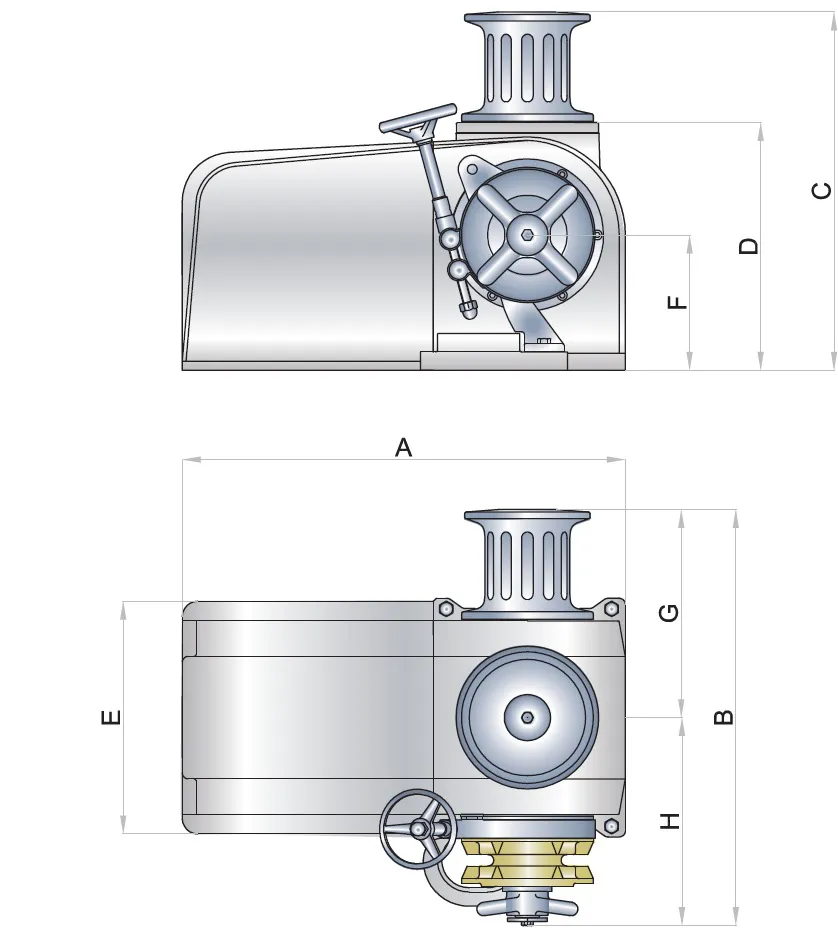

9200AC
| A | 1208 |
| B | 1161 |
| C | 918 |
| D | 602 |
| E | 600 |
| F | 355 |
| G | 508 |
| H | 653 |
1100AC
| A | 1208 |
| B | 1161 |
| C | 918 |
| D | 602 |
| E | 600 |
| F | 355 |
| G | 508 |
| H | 653 |
HY
| A | 1208 |
| B | 1161 |
| C | 918 |
| D | 602 |
| E | 600 |
| F | 355 |
| G | 508 |
| H | 653 |
All sizes are in mm
