NV 24
VERTICAL WINDLASSES
Vertical Windlass model NV-24 all in Stainless Steel AISI 316. Available with different drives and recommended for Vessels up to 65m. All models accommodate stud link chain. Available in 230V, 400V or Hydraulic drive.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 9200W | 1100W | HY |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 8400 Kg | 9200 Kg | 4500 Kg |
| LIFT WORKING LOAD | 4180 Kg | 4600 Kg | 4500 Kg |
| LINE SPEED | 12 mt/min | 13 mt/min | 12 mt/min |

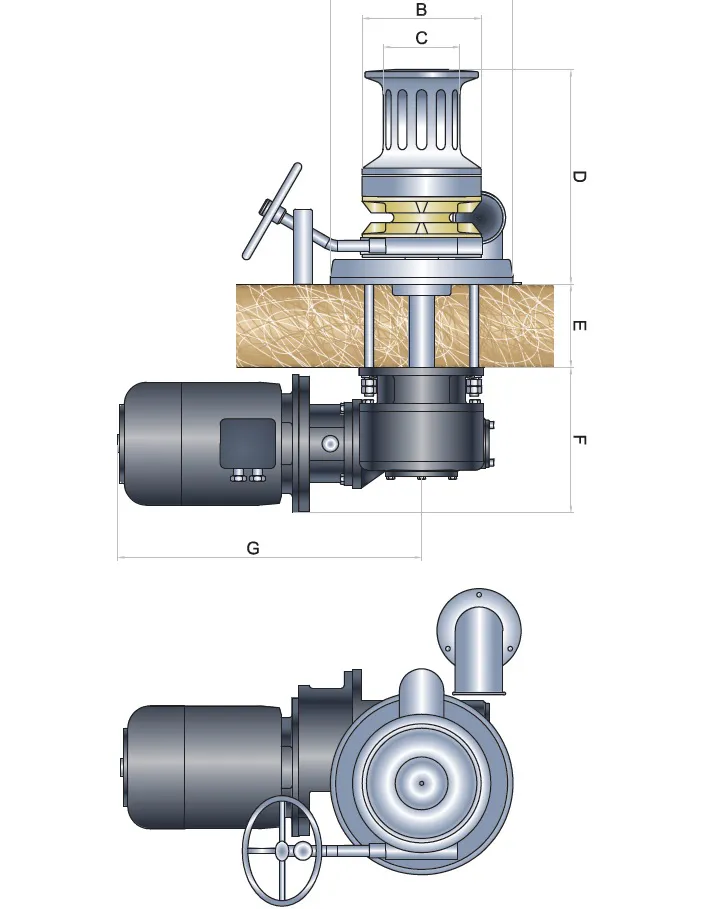

9200
| A | 500 |
| B | 400 |
| C | 300 |
| D | 515 |
| E | MIN240 |
| F | 492 |
| G | 830 |
1100
| A | 500 |
| B | 400 |
| C | 300 |
| D | 515 |
| E | MIN240 |
| F | 492 |
| G | 830 |
HY
| A | 500 |
| B | 400 |
| C | 300 |
| D | 515 |
| E | MIN240 |
| F | 492 |
| G | 476 |
All sizes are in mm
