SAMOS
CAPSTANS

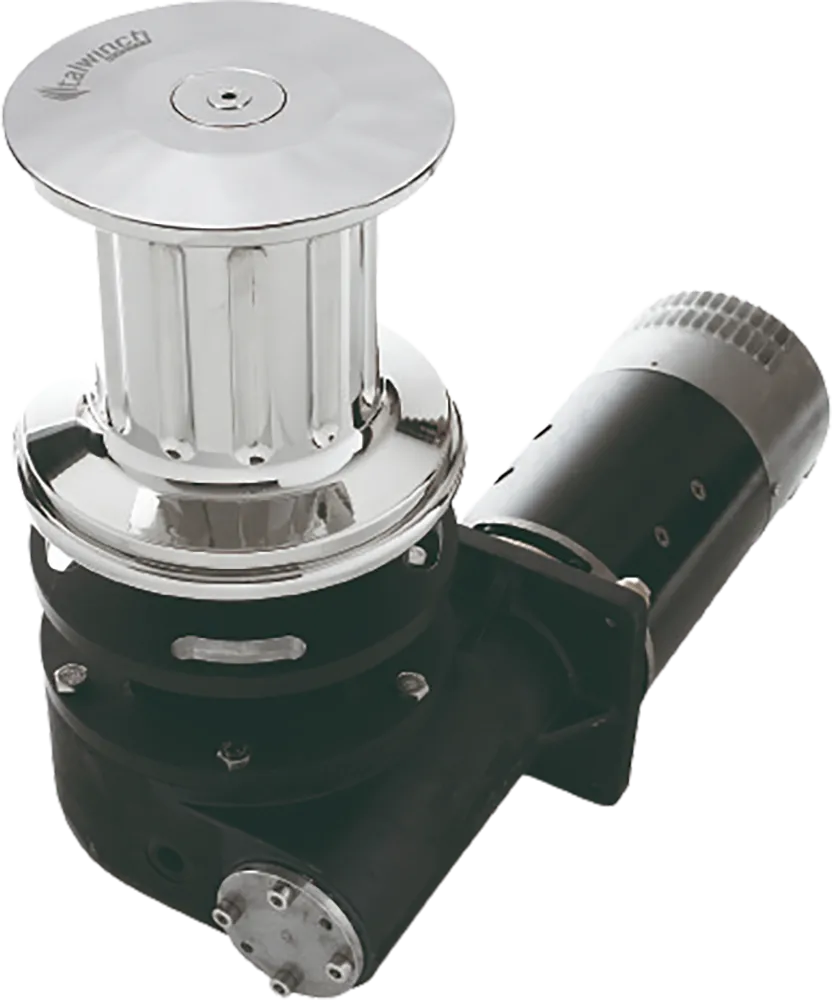

Stainless steel AISI 316 capstan winch, with different drives and recommended for vessels up to 30 meters. Available in 24V, 230V, 400V or hydraulic drive.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 2700W | 2200W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 230V/400V | N/A |
| MAXIMUM PULL | 2300 Kg | 2300 Kg | 1500 Kg |
| LIFT WORKING LOAD | 600 Kg | 625 Kg | 1500 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min |
| CURRENT ABSORPTION | 150 A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | <>55 to 70 Kg | ||

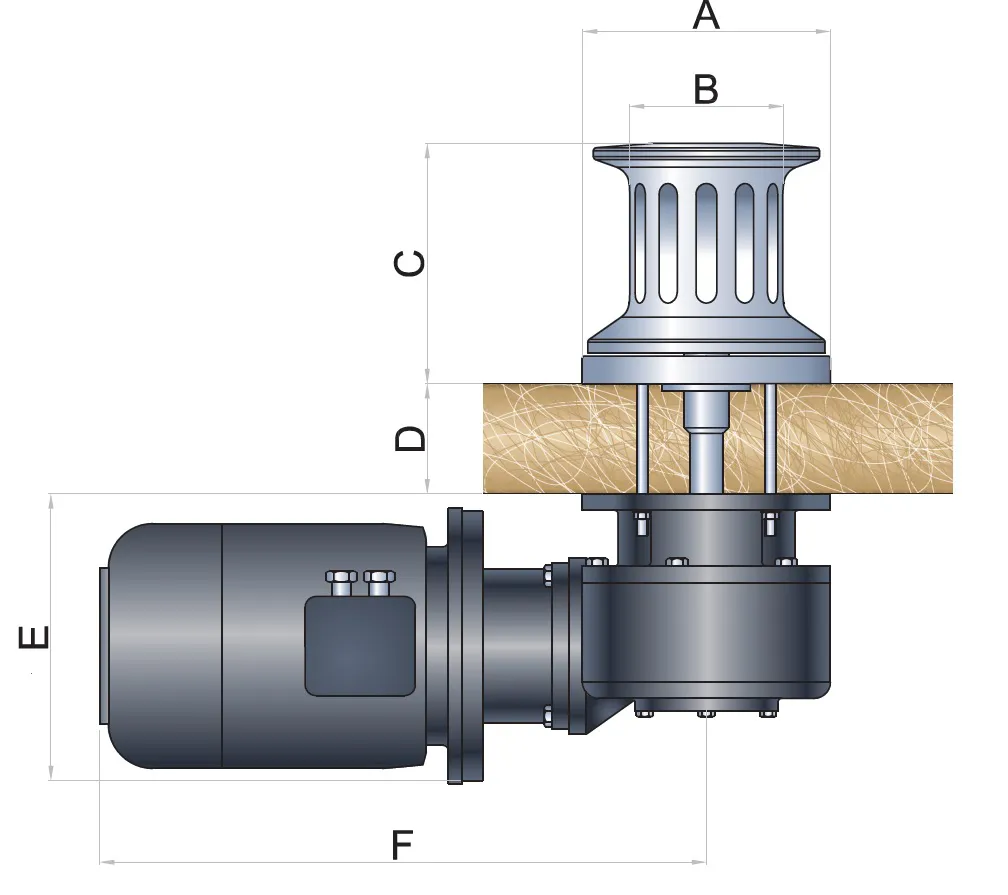

2700W
| A | 225 |
| B | 140 |
| C | 218 |
| D | 50/110 |
| E | 180 |
| F | 395 |
2200W
| A | 225 |
| B | 140 |
| C | 218 |
| D | 50/110 |
| E | 180 |
| F | 378 |
HY
| A | 225 |
| B | 140 |
| C | 218 |
| D | 50/110 |
| E | 180 |
| F | 234 |
All sizes are in mm
