STANDARD CHAIN STOPPER
CHAIN STOPPERS
Italwinch has four standard models of chain stopper with roller suitable for the main chains from 8mm of diameter up to 17.5mm.These models come standard with a chain tensioner (“devil claw”) and are completely made in stainless steel AISI 316L.
STP-10X
Chain
Suits chain sizes:
8mm
8mm ISO
8mm DIN766
5/16” G4
5/16” BBB
10mm
10mm ISO
3/8” G4
10 DIN 766
10mm DIN766
3/8” BBB
STP-12
Chain
Suits chain sizes:
12mm
12mm ISO
13mm DIN 766
7/16” G4
13DIN764
13mm DIN764
14mm
14mm ISO
12.5 C.T.
12.5 Stud link
14 C.T.
14 Stud link
1/2”BBB
1/2” BBB
1/2” HT
1/2” HT
MOD-14
Chain
Suits chain sizes:
12mm
12mm ISO
13mm DIN 766
7/16” G4
13DIN764
13mm DIN764
14mm
14mm ISO
12.5 C.T.
12.5 Stud link
14 C.T
14 Stud link
1/2”BBB
1/2” BBB
1/2” HT
1/2” HT
16mm
16mm ISO
16DIN766
16mm DIN766
MOD-17
Chain
Suits chain sizes:
16mm
16mm ISO
16DIN766
16mm DIN766
16 C.T.
16 Stud link
17.5 C.T
17.5 Stud link

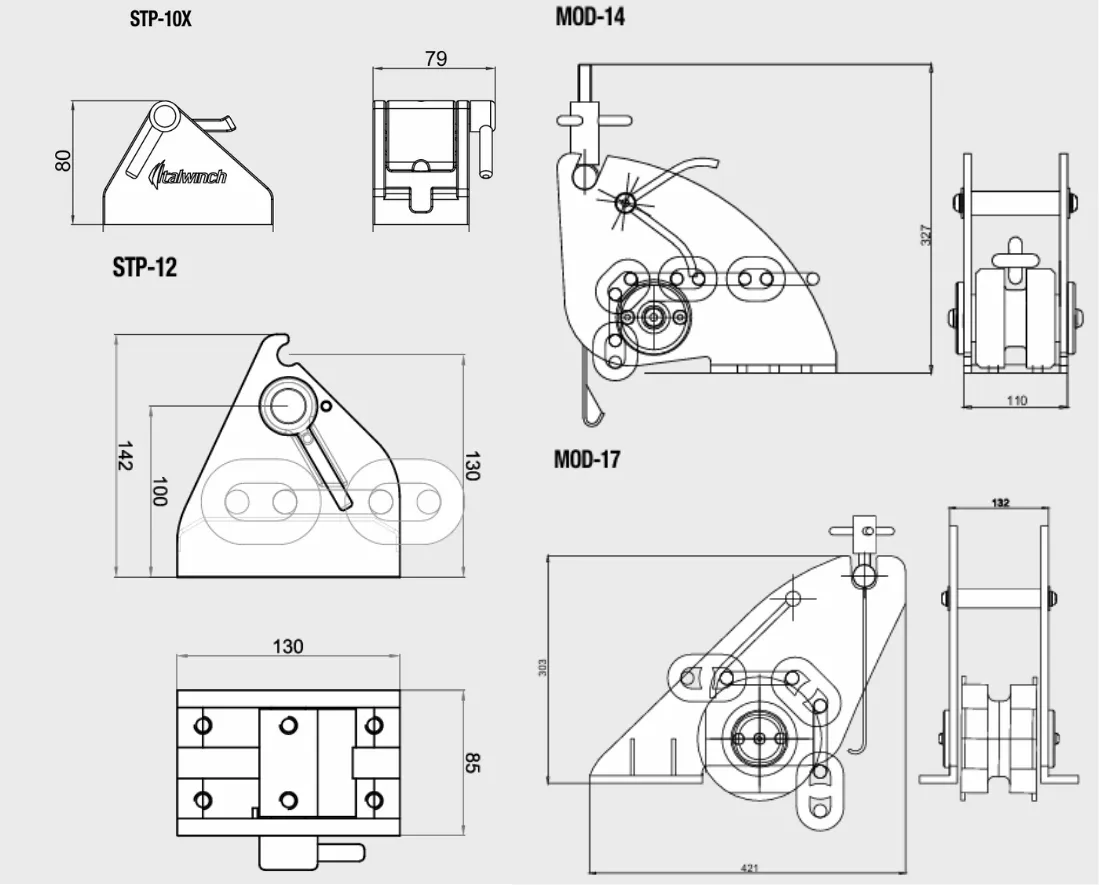

All sizes are in mm
