STAR PLUS
VERTICAL WINDLASSES
STAR PLUS is a stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 26m. STAR PLUS can use chains up to 14mm. Available in 24V, 48V, 230V, 400V or hydraulic drive. Star Plus is Type approved by Bureau Veritas.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 2300W | 2700W | 3000W | 2200W | 3600W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 24V | 24V | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 2200 Kg | 2300 Kg | 2500 Kg | 2550 Kg | 2600 Kg | 1500Kg |
| LIFT WORKING LOAD | 500Kg | 600 Kg | 750 Kg | 730 Kg | 824 Kg | 1500 Kg |
| LINE SPEED | 12mt/min | 12mt/min | 13mt/min | 12mt/min | 12mt/min | 12mt/min |
| CURRENT ABSORPTION | 120A | 150A | 180A | N/A | N/A | N/A |
| WEIGHT (WITHOUT CAPSTAN) | <>50 to 80 Kg | |||||
| WEIGHT (WITH CAPSTAN) | <>60 to 90 Kg | |||||

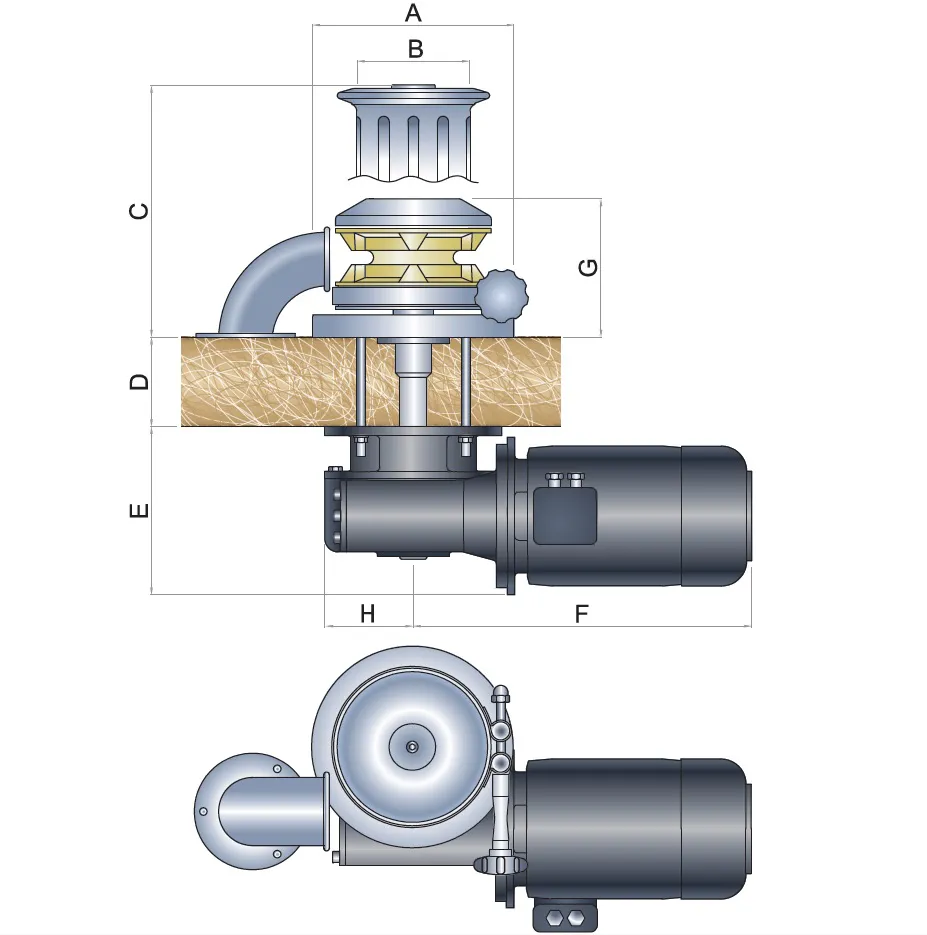

2300
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 190 |
| F | 439 |
| G | 154 |
| H | 100 |
2700
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 190 |
| F | 439 |
| G | 154 |
| H | 100 |
3000
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 260 |
| F | 454 |
| F | 154 |
| H | 130 |
2200AC
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 190 |
| F | 378 |
| G | 154 |
| H | 100 |
3600AC
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 190 |
| F | 433 |
| G | 154 |
| H | 100 |
HY
| A | 225 |
| B | 125 |
| C | 281 |
| D | 60-110 |
| E | 190 |
| F | 232 |
| G | 154 |
| H | 100 |
All sizes are in mm
