WHC040 RADIO CHAIN COUNTER AND THRUSTER CONTROL
MZ ELECTRONICS AND CHAIN COUNTERS
![OzziMarine OzziMarine](/assets/documents/669-4577740276087-uAGreq/whc040-1-removebg-preview.webp)
The WHC040 radio chain-counter is an innovative instrument that allows the windlass to be controlled via a radio hand control, which also provides the measurement of the lowered chain. It is also designed to be able to control the bow thruster and the stern thruster (if present).
• Receiver supply voltage: 10…32V DC/AC
• IP degree: IP67
• Internal wireless rechargeable lithium ion battery (charger included)
• Possibility to control 1 windlass and 2 thrusters (6 channels)
• 5 languages display
• Automatic descent & Up alert function
• Keyboard block function to prevent accidental activation
• Chain speed display
• Wireless charging pad
• Support bracket for stowing after use
Volts
![OzziMarine OzziMarine](/assets/documents/670-4577740437779-wnEGnn/capture.webp)

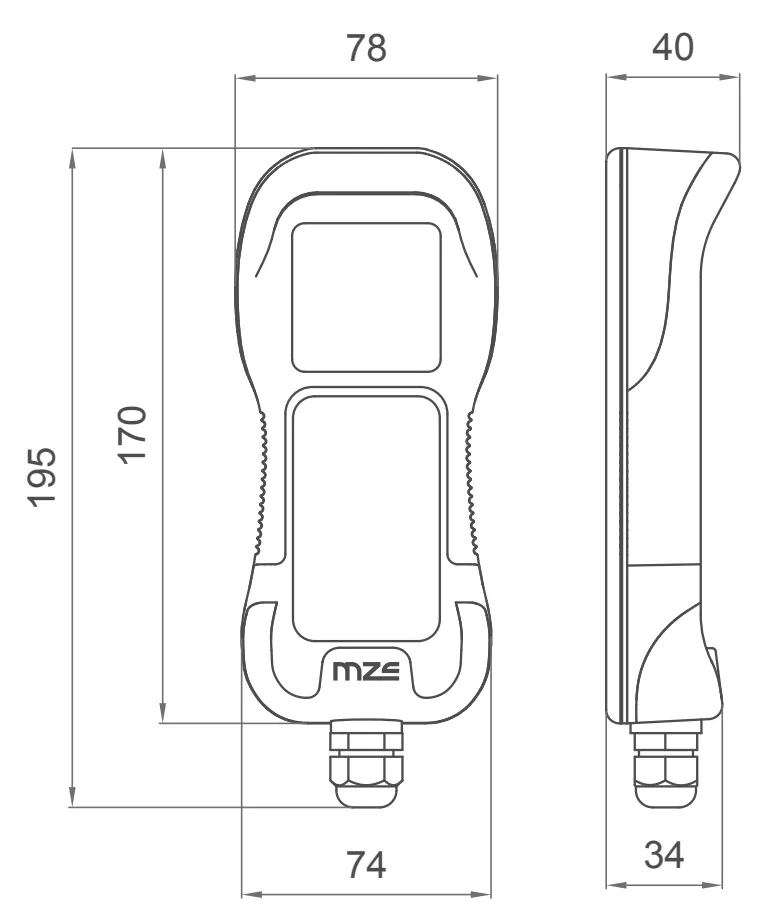

All sizes are in mm
