WINCH BREAKER CONTROL
MZ ELECTRONICS AND CHAIN COUNTERS
The WBC / S-2.0 allows the control of a double speed winch through two buttons. It allows to the winch to stop when a current threshold is set through a switch. By calibrating the value of the tripping current it is possible to have optimal control of the rolled rope pull level.
PRINCIPLE TECHNICAL CHARACTERISTICS:
• Power supply voltage: from 10 to 32VDC
• Control: from buttons with normally open contact.
• Possibility to set the current and the intervention delay.
• Can be used with any type of DC motor: 2/3/4 wires.
• Maximum current sensor range 250A
• Tripping current adjustable from 75A to 225A in increments of 10A
• Protected against polarity inversion due to incorrect connection of the battery

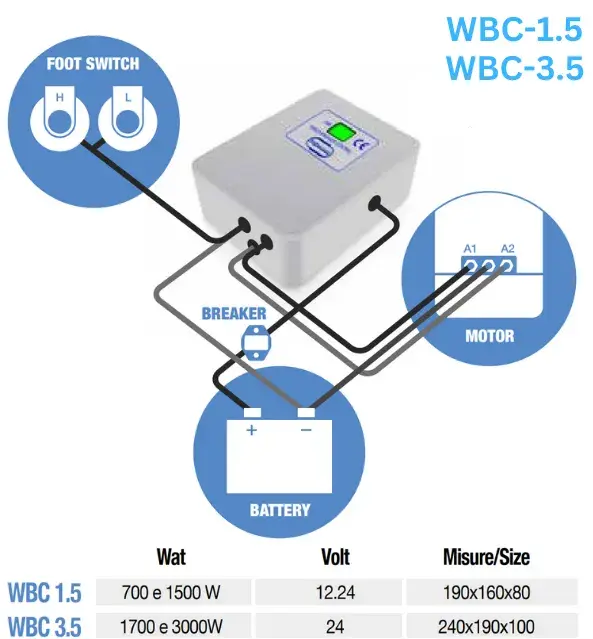

This device allows you to have control of a winch with one or two buttons only. It will automatically pass from high to low speed when the maximum set power measure is reached.
MAIN TECHNICAL CHARACTERISTICS:
• Power supply voltage: from 10 to 28 VDC with automatic setting when switched on.
• Control: from buttons with a normally open connection.
• Digital setting for power and operation delay.
• Power view on a 3 digit display.
All sizes are in mm
