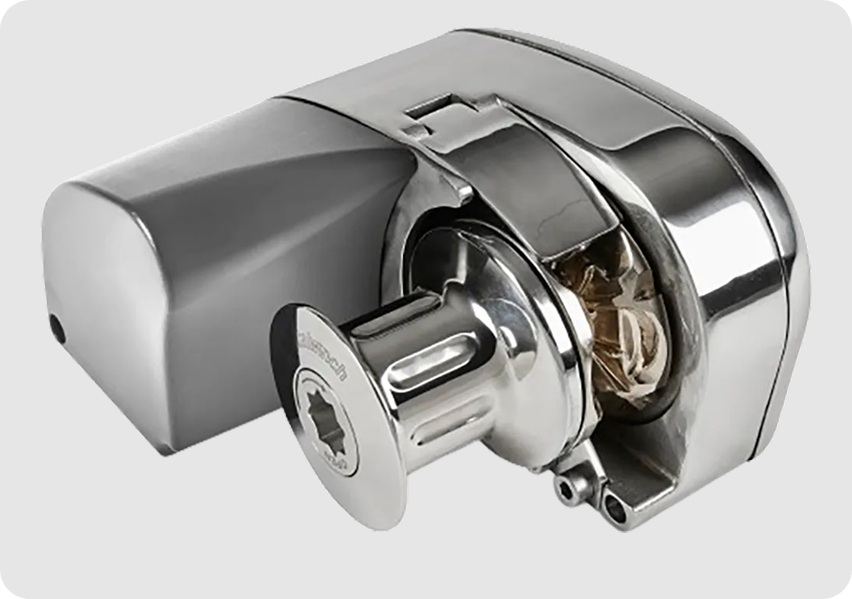

IKI PRO
HORIZONTAL WINDLASSES
Stainless steel AISI 316 horizontal windlass. Recommended for vessels up to 12m. IKI can use chain or Rope/Chain combination. Chain up to 8mm and 12mm Rope and is equipped with a Rope tensioner. Comes with built-in chain counter sensor.
Motor
SPECIFICATIONS
| ELECTRIC MOTOR | 500W | 500W | 800W | 800W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V |
| MAXIMUM PULL | 670 Kg | 680 Kg | 800 Kg | 810 Kg |
| LIFT WORKING LOAD | 90 kg | 90 kg | 100 Kg | 100 Kg |
| LINE SPEED | 25 mt/min | 25 mt/min | 28 mt/min | 28 mt/min |
| CURRENT ABSORPTION | 60 A | 32 A | 90 A | 45 A |
| WEIGHT (WITHOUT CAPSTAN) | 11.5 Kg | 11.5 Kg | 11.5 Kg | 11.5 Kg |
| WEIGHT (WITH CAPSTAN) | 12 Kg | 12 Kg | 12 Kg | 12 Kg |
500
| A | 126 |
| B | 65 |
| C | 225 |
| D | 84.5 |
| E | 122 |
| F | 176 |
| G | 200 |
| H | 15/45 |
800
| A | 126 |
| B | 65 |
| C | 225 |
| D | 84.5 |
| E | 122 |
| F | 176 |
| G | 200 |
| H | 15/45 |
All sizes are in mm
