OBI 500
HORIZONTAL WINDLASSES
Anticorodal anodized Aluminium horizontal windlass. OBI 500 can use chains sizes 6mm to 8mm in diameter and in diameter, accommodates Rope/Chain, is equipped with rope tensioner. Recommended for vessels up to 9m. Comes with built-in chain counter sensor.
Motor
SPECIFICATIONS
| ELECTRIC MOTOR | 500W | 500W | 700W | 700W |
| MOTOR SUPPLY VOLTAGE | 12V | 24V | 12V | 24V |
| MAXIMUM PULL | 630 Kg | 640 Kg | 670 Kg | 680 Kg |
| LIFT WORKING LOAD | 90 Kg | 90 Kg | 100 Kg | 100 Kg |
| LINE SPEED | 23 mt/min | 23 mt/min | 25 mt/min | 25 mt/min |
| CURRENT ABSORPTION | 60 A | 32 A | 90 A | 40 A |
| WEIGHT (WITHOUT CAPSTAN) | N/A | N/A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | 8.2 Kg | 8.2 Kg | 8.8 Kg | 8.8 Kg |

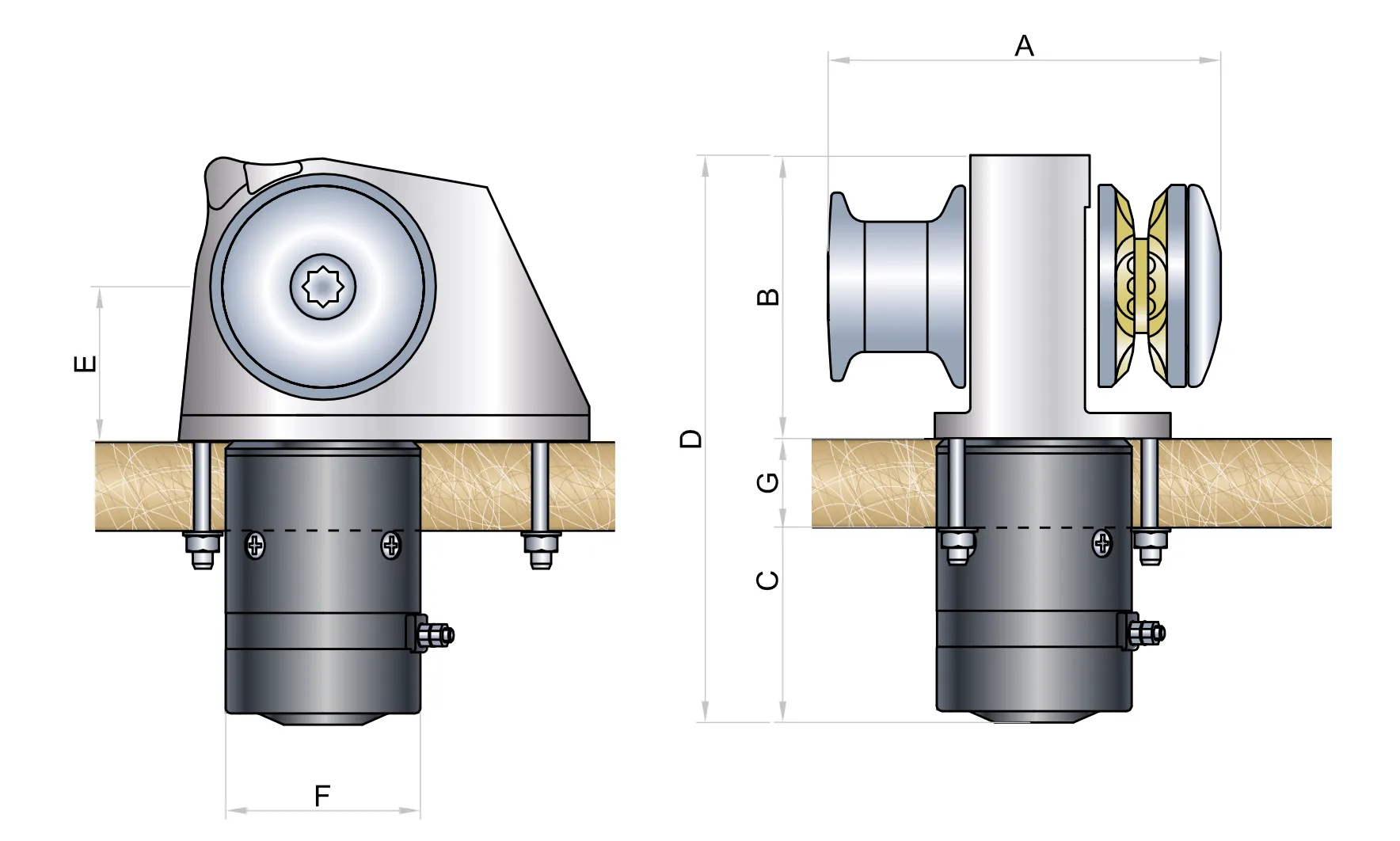

500
| A | 158 |
| B | 138 |
| C | 144 |
| D | 282 |
| E | 82 |
| F | 80 |
| G | 15/45 |
700
| A | 158 |
| B | 138 |
| C | 144 |
| D | 282 |
| E | 82 |
| F | 80 |
| G | 15/45 |
All sizes are in mm
