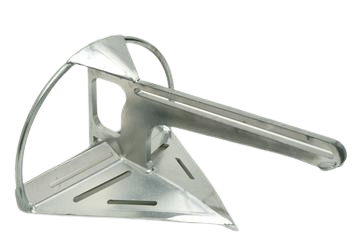

Super Sarca
ULTRA ANCHORS

Please note that this chart is a guide only. We recommend that you evaluate the variables listed below and choose the most suitable products for your vessel.
Available in Galvanised and Stainless Steel Anchors.
SPECIFICATIONS

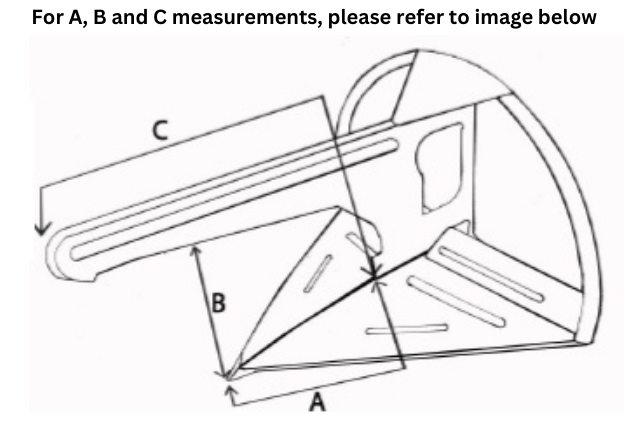

ANCHOR SIZE | BOAT LENGTH IN METERS | BOAT WEIGHT TONNES | WEIGHT OF ANCHOR | OVERALL WIDTH | OVERALL HEIGHT | OVERALL LENGTH | A | B | C |
0.5 | UP - 3.8 | 200KG | 3KG | 305MM | 220MM | 530MM | 125 | 140 | 330 |
1 | 3.8 - 4.5 | 1/2 | 4 | 345 | 250 | 605 | 145 | 165 | 375 |
2 | 4.5 - 6 | 1.5 | 6 | 375 | 280 | 640 | 152 | 175 | 403 |
3 | 6 - 7.5 | 1.5 - 2 | 9 | 415 | 310 | 710 | 165 | 185 | 445 |
4 | 7.5 - 9 | 2 - 3.5 | 13.5 | 460 | 340 | 775 | 185 | 205 | 480 |
5 | 9 - 10 | 3.5 - 5 | 15.5 | 500 | 360 | 840 | 205 | 225 | 520 |
6 | 10 - 12 | 5 - 11 | 22 | 530 | 380 | 830 | 210 | 225 | 550 |
7 | 12 - 14 | 11 - 16 | 25 | 565 | 390 | 835 | 300 | 260 | 560 |
8 | 14 -18 | 16 - 26 | 34.5 | 610 | 425 | 962 | 300 | 250 | 640 |
9 | 18 - 20 | 26 - 34 | 41.5 | 630 | 465 | 925 | 315 | 250 | 730 |
11 | 20 - 22 | 34 - 40 | 60.5 | 690 | 515 | 980 | 390 | 310 | 705 |
13 | 22 - 25 | 40 - 60 | 74 | 690 | 515 | 980 | 390 | 310 | 705 |
14 | 25 - 28 | 60 - 88 | 113 | 790 | 580 | 1100 | 440 | 355 | 435 |
14B | 28 - 32 | 88 - 100 | 125 | 790 | 580 | 1100 | 440 | 355 | 435 |
15 | TBA | TBA | 150 | 780 | 570 | 1150 | 525 | 400 | 855 |
17 | TBA | TBA | 185 | 820 | 615 | 1200 | 570 | 420 | 940 |
18 | TBA | TBA | 220 | 930 | 690 | 1270 | 610 | 465 | 960 |

All sizes are in mm
