ARADO
VERTICAL WINDLASSES
ARADO is a Stainless Steel AISI 316 Vertical Windlass. Suggested for vessels up to 50 metres. The ARADO can accommodate chain up to 20.5mm stud link. Available in: 230V, 400V or hydraulic.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 4000W | 5500W | HY1 |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | N/A |
| MAXIMUM LIFT LOAD | 3980 Kg | 5060 Kg | 4000 Kg |
| LIFT WORKING LOAD | 1990 Kg | 2530 Kg | 4000 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min |
| CURRENT ABSORPTION | N/A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | <>250 to 295 Kg | ||

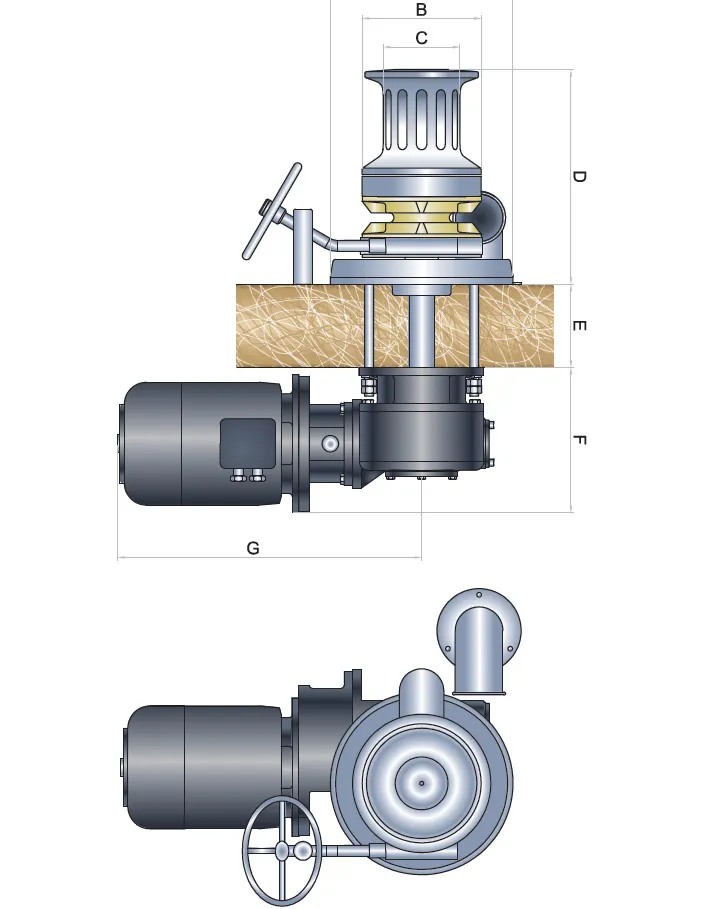

5500AC
| A | 350 |
| B | 315 |
| C | 214 |
| D | 537 |
| E | 50-150 |
| F | 555 |
| G | 656 |
7500AC
| A | 350 |
| B | 315 |
| C | 214 |
| D | 537 |
| E | 50-150 |
| F | 555 |
| G | 656 |
9200AC
| A | 380 |
| B | 340 |
| C | 214 |
| D | 537 |
| E | 50-150 |
| F | 606 |
| G | 735 |
HY
| A | 350 |
| B | 340 |
| C | 215 |
| D | 537 |
| E | 50-150 |
| F | 555 |
| G | 350 |
All sizes are in mm
