RAJA
HORIZONTAL WINDLASSES

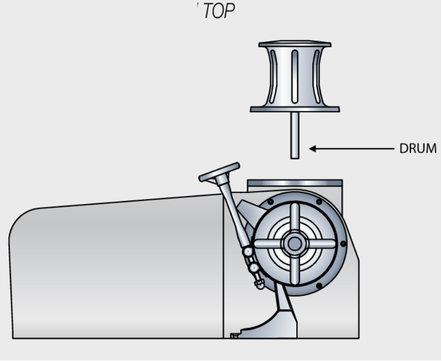

Anticorodal Aluminium horizontal axis windlass. With stainless steel Capstan. The RAJA can use chains 10mm to 14mm in diameter. With different drives and recommended for vessels up to 26m. Available in different Capstan and Gypsy configurations. For available versions see the windlass configuration table. White painted option available.
Optional: White Paint
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 2300W | 2700W | 3600W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 24V | 230V/400V | N/A |
| MAXIMUM PULL | 2800 Kg | 3000KG | 3200 Kg | 700 Kg |
| LIFT WORKING LOAD | 520 Kg | 590 Kg | 700 Kg | 700 Kg |
| LINE SPEED | 12 mt/min | 12 mt/min | 12 mt/min | 12 mt/min |
| CURRENT ABSORPTION | 120 A | 150 A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | <>55 to 70 Kg | |||

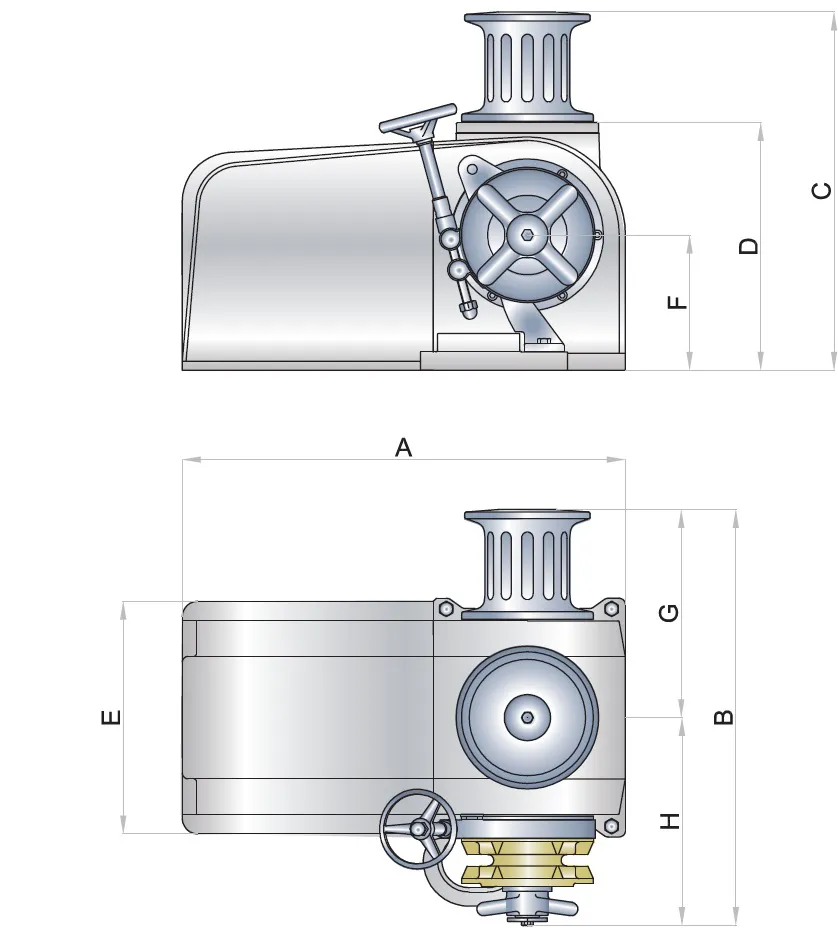

2300
| A | 632 |
| B | 500 |
| C | 400 |
| D | 280 |
| E | 210 |
| F | 165 |
| G | 260 |
| H | 240 |
2700
| A | 632 |
| B | 500 |
| C | 400 |
| D | 280 |
| E | 210 |
| F | 165 |
| G | 260 |
| H | 240 |
3600AC
| A | 632 |
| B | 500 |
| C | 400 |
| D | 280 |
| E | 210 |
| F | 165 |
| G | 260 |
| H | 240 |
HY
| A | 632 |
| B | 500 |
| C | 400 |
| D | 280 |
| E | 210 |
| F | 165 |
| G | 260 |
| H | 240 |
All sizes are in mm
