CAESAR
HORIZONTAL WINDLASSES
White painted horizontal axis windlass. With stainless steel Capstan. The CAESAR can use chains from 16mm to 20.5mm stud link. With different drives and recommended for boats up to 65 metres Available in different Capstan and Gypsy configurations. For available versions see the windlass configuration table.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 7500W | 9200W | HY |
| MOTOR SUPPLY VOLTAGE | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 3600 Kg | 4300 Kg | 3400 Kg |
| LIFT WORKING LOAD | 2700 Kg | 3200 Kg | 3400 Kg |
| LINE SPEED | 10 mt/min | 10 mt/min | 10 mt/min |
| CURRENT ABSORPTION | N/A | N/A | N/A |
| WEIGHT (WITH CAPSTAN) | <>340 to 380 Kg | ||

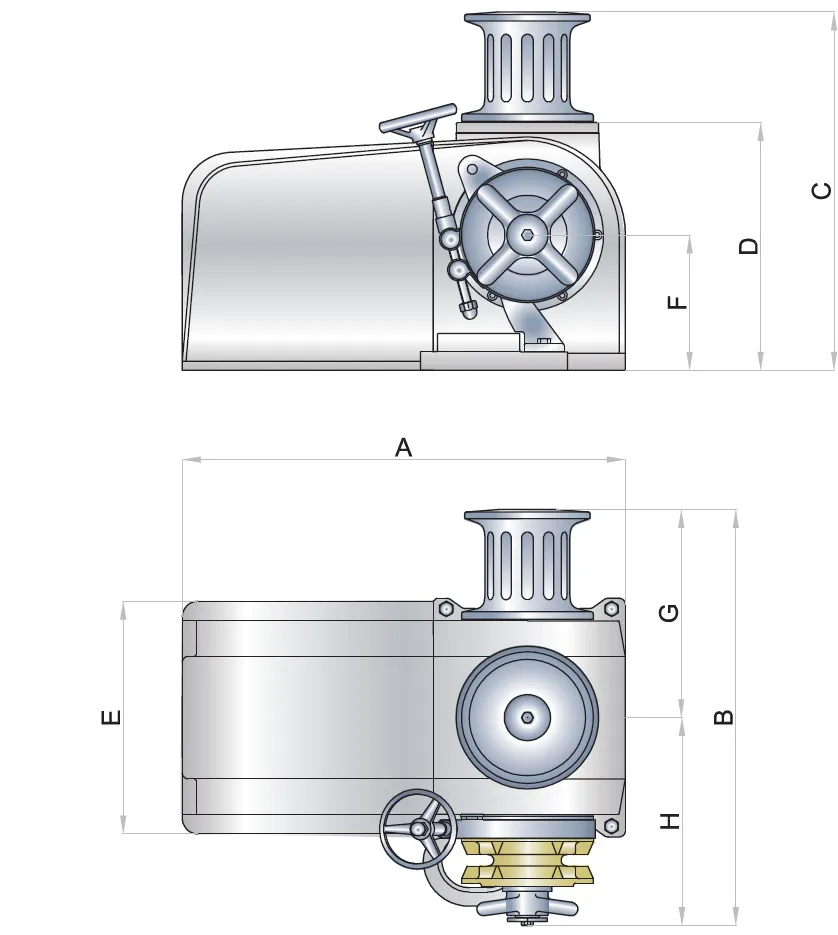

7500AC
| A | 915* |
| B | 900 |
| C | 675 |
| D | 465 |
| E | 430 |
| F | 260 |
| G | 475 |
| H | 425 |
9200AC
| A | 915* |
| B | 900 |
| C | 675 |
| D | 465 |
| E | 430 |
| F | 260 |
| G | 475 |
| H | 425 |
HY
| A | 915 |
| B | 900 |
| C | 675 |
| D | 465 |
| E | 430 |
| F | 260 |
| G | 475 |
| H | 425 |
All sizes are in mm
