NV16-B
VERTICAL WINDLASSES

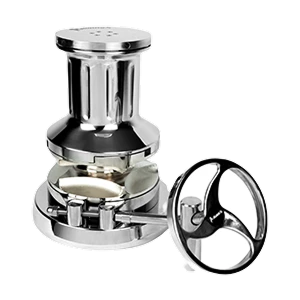

NV 16B is a Stainless Steel AISI 316 vertical windlass. Available in electric and hydraulic versions, it is suggested for Vessels up to 42 metres. It can accommodate chains from 12mm to 16mm stud link. Electromagnetic brake and dog clutch instead of conical clutch are standard. 24v, 230/400v and Hyd. Drive. 48Volt also available. RINA Type Approved.
Hydraulic
SPECIFICATIONS
| ELECTRIC MOTOR | 3500W | 3000W | 4000W | HY |
| MOTOR SUPPLY VOLTAGE | 24V | 230V/400V | 230V/400V | N/A |
| MAXIMUM PULL | 3000 Kg | 5000 Kg | 6700 Kg | 3000 Kg |
| LIFT WORKING LOAD | 1100 Kg | 1250 Kg | 1700 Kg | 3000 Kg |
| LINE SPEED | 13 mt/min | 12 mt/min | 12 mt/min | 12 mt/min |
| WEIGHT (WITH CAPSTAN) | <>170 to 220 Kg | |||

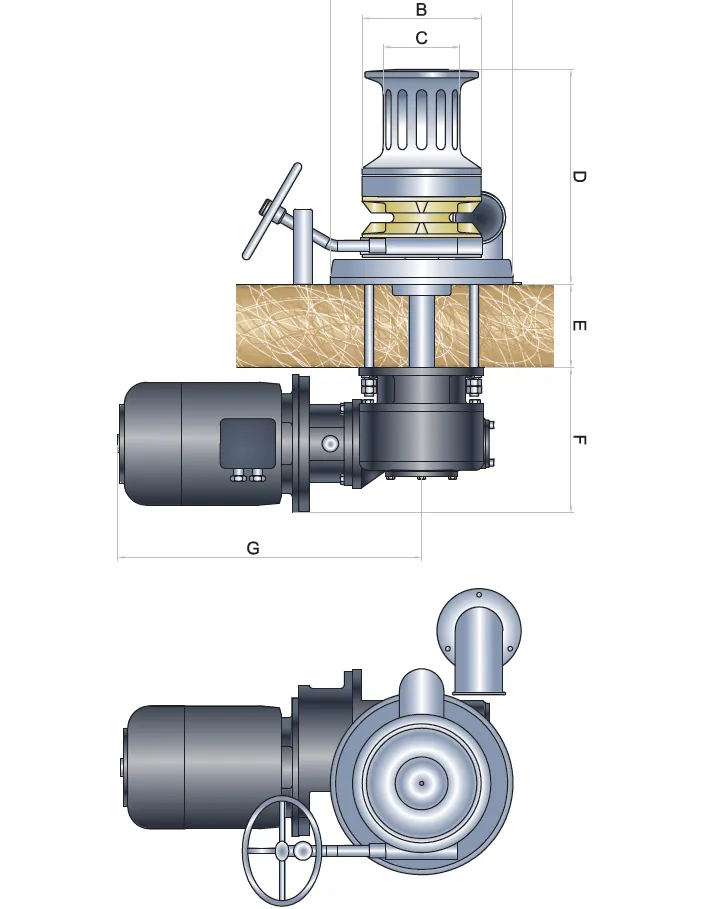

3500
| A | 330 |
| B | 250 |
| C | 155 |
| D | 400 |
| E | 110/170 |
| F | 263 |
| G | 564 |
| H | 246 |
3000
| A | 330 |
| B | 250 |
| C | 155 |
| D | 400 |
| E | max150 |
| F | 340 |
| G | 626 |
| H | 246 |
4000
| A | 330 |
| B | 250 |
| C | 155 |
| D | 400 |
| E | max150 |
| F | 340 |
| G | 726 |
| H | 246 |
HY
| A | 330 |
| B | 250 |
| C | 155 |
| D | 400 |
| E | max150 |
| F | 340 |
| G | 365 |
| H | 246 |
All sizes are in mm
