RPWM REGULATOR

MZ ELECTRONICS AND CHAIN COUNTERS

OzziMarine

The MZ RPWM speed controllers will allow you to regulate the Winch Motor speed from 0 to 100%. MZ RPWM can be used for both permanent magnet two-wires motors and wound motors. The RPWM speed controllers allows for a soft and gradual start of the motor so that they do not stress batteries and will extend their lifetime. RPWM are available in three power sizes that you can command whether by a control panel, electronic hand-held controls or a joystick panel. All the RPWM units are equipped with visual and sound alarms in order to prevent overload, overheating and other possible operating anomalies.

RPWM REGULATOR
Type <>Description

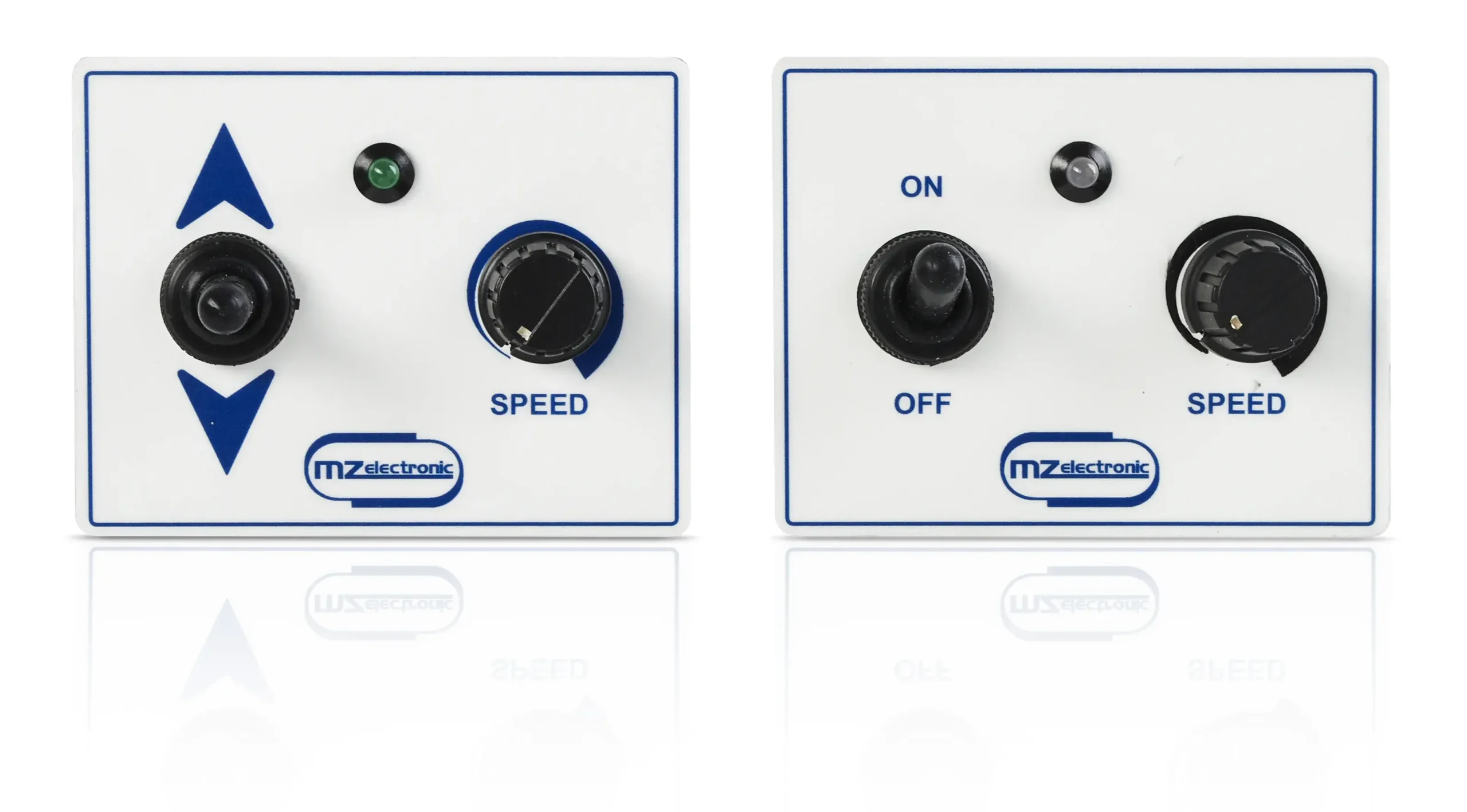

RPWM-PA1 <>Control panel for RPWM001 box
RPWM-PA2 <>Control panel for RPWM002 - RPWM003 box (Box panel control)
RPWM-PU2 <>Control panel for RPWM002 - RPWM003 box (Box hand-held control)
RPWM REGULATOR
Type
RPWM001-12
RPWM001-24
RPWM002
RPWM002
RPWM003-12
RPWM003-24
POWER
400 W
700 W
1500 W
2200 W
5000 W
9000 W
ENGINE TYPE
12VDC 2 FILI
24VDC 2 FILI
12VDC 2 o 3 FILI
12VDC 2 o 3 FILI
12VDC 2,3,4 FILI
24VDC 2,3,4 FILI
ALIM.
12VDC
24VDC
10..28V
10..28V
12V
24V
INV. ROT.
NO
NO
YES
YES
EXTERNAL
EXTERNAL
DIMENSIONS
175x150x80mm
175x150x80mm
275x225x120mm
275x225x120mm
290x240x120mm
290x240x120mm
OzziMarine

All sizes are in mm
